Circuit Inspection

G13709408

Courtesy of KIA MOTORS AMERICA, INC.

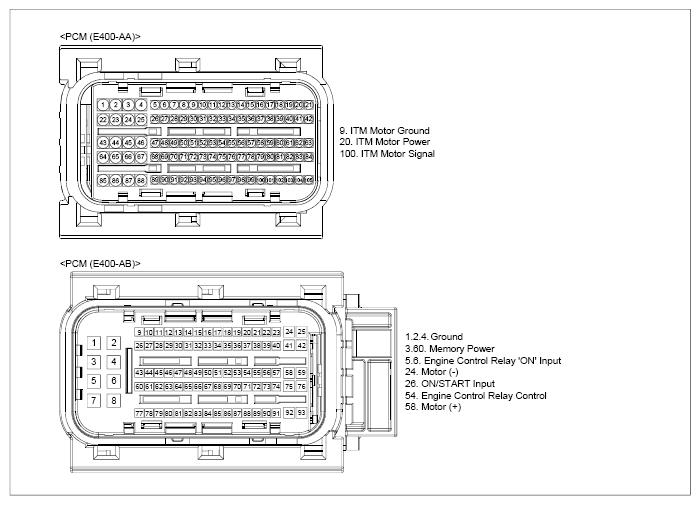

G13709409

Courtesy of KIA MOTORS AMERICA, INC.

G13709410

Courtesy of KIA MOTORS AMERICA, INC.

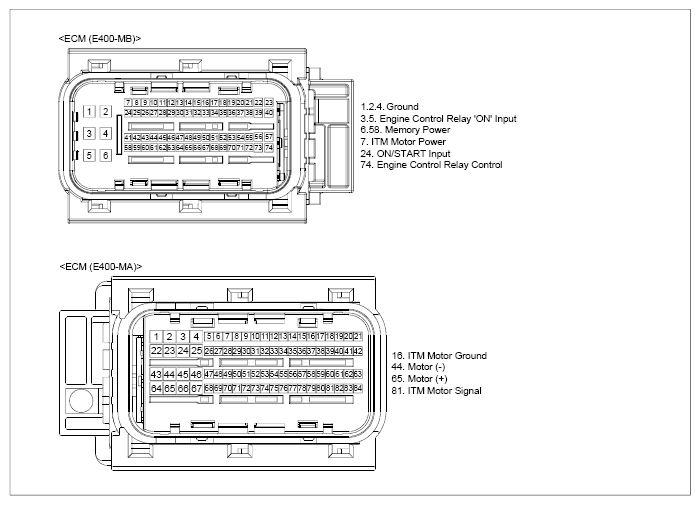

G13709411

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector (s) from the concerned component. Ignition "ON".	ITM motor connector	5 (motor +)	Chassis ground	-	Approx. 1.8V
	ITM motor connector	4 (motor -)	Chassis ground	-	Approx. 0V
	ITM motor connector	3 (power)	Chassis ground	-	Approx. 5V
	ITM motor connector	1 (ground)	Chassis ground	-	Approx. 0V
	ITM motor connector	2 (signal)	Chassis ground	-	Approx. 4V
Ignition "OFF". Disconnect the electrical connector (s) from the concerned component.	ITM motor connector	5 (motor +)	Chassis ground	-	∞ (infinity)Ω
	ITM motor connector	4 (motor -)	Chassis ground		∞ (infinity)Ω
	ITM motor connector	2 (signal)	Chassis ground	-	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
