Repair Procedures: Inspection

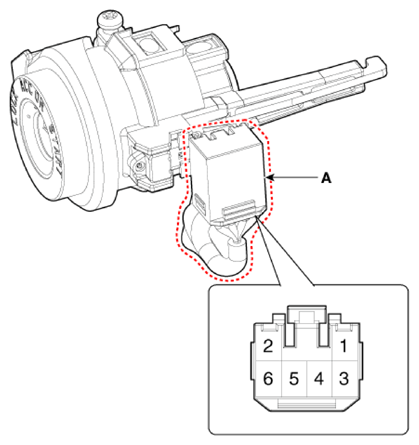

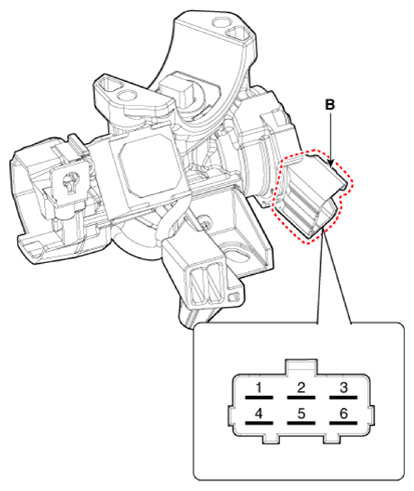

- Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column.
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|

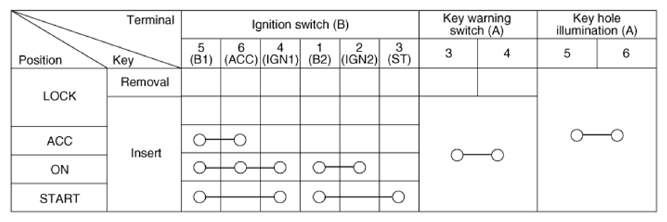

- Check for continuity between the terminals.
- If continuity is not specified, replace the switch.
 Courtesy of HYUNDAI MOTOR AMERICA
|
