Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the engine cover.
  3. Disconnect the ignition coil connector (A).

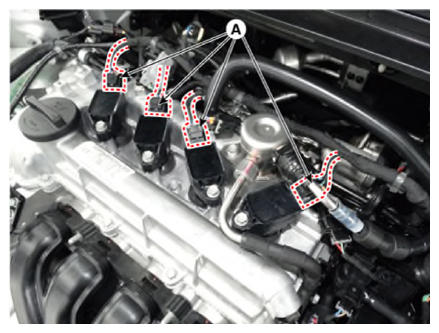

    G13436387Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the ignition coil (A) after loosening the mounting bolt.

    Ignition coil mounting bolt:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

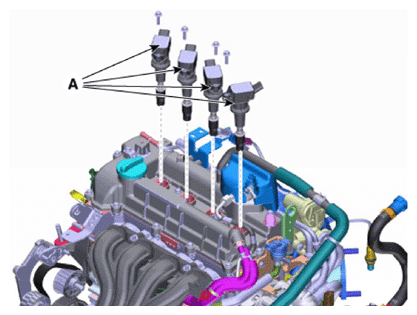

    G13436388Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

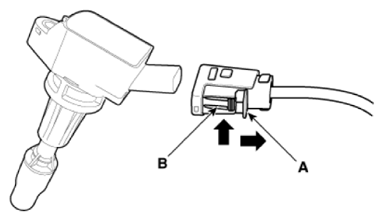

    G13436389Courtesy of KIA MOTORS AMERICA, INC.
