Removal And Installation

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

  3. Loosen the mounting screw, remove the crash pad garnish assembly [LH] (A).
    G13349982Courtesy of KIA MOTORS AMERICA, INC.

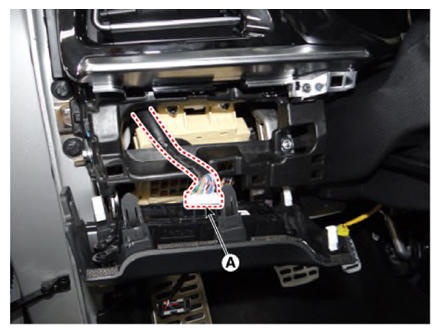

  4. Disconnect the crash pad side switch connector (A).
    G13349983Courtesy of KIA MOTORS AMERICA, INC.

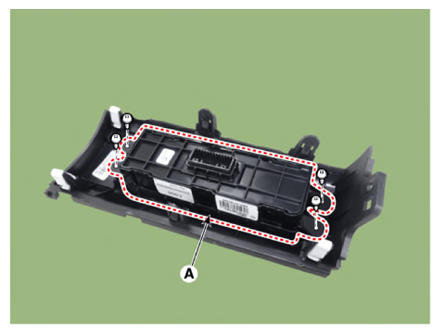

  5. Remove the crash pad side switch (A) after loosening the mounting screws.
    G13349984Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
