Components And Components Location: Components

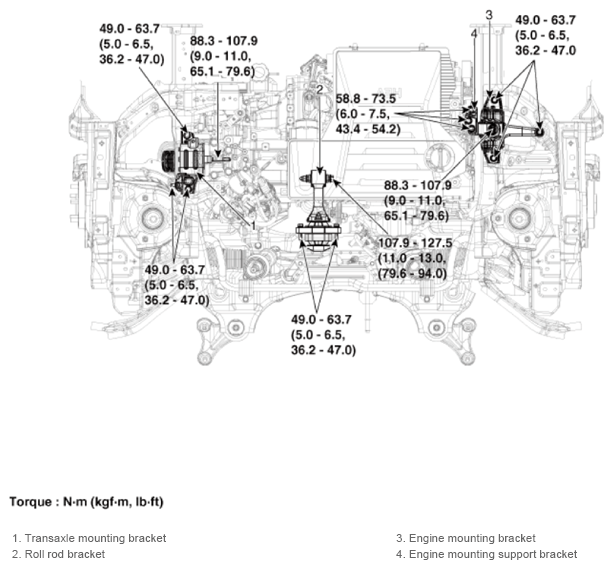

Fig 1: Engine Mounting Components With Torque Specification
G13348357Courtesy of KIA MOTORS AMERICA, INC.
