Connector And Terminal Function
WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

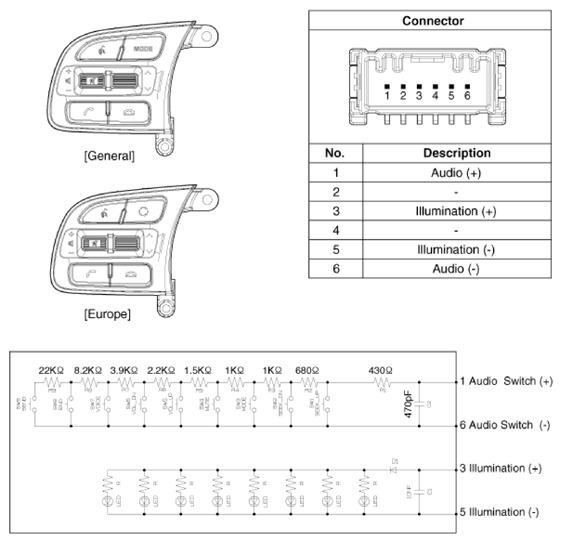

[Audio + Bluetooth]
 Courtesy of KIA MOTORS AMERICA, INC.
|

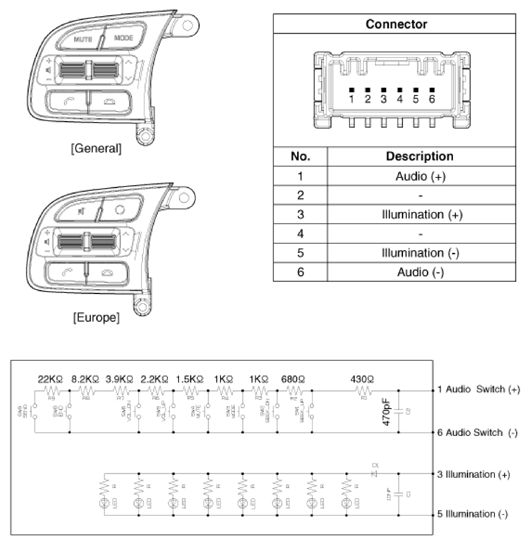

[Audio + Bluetooth + Voice]
 Courtesy of KIA MOTORS AMERICA, INC.
|

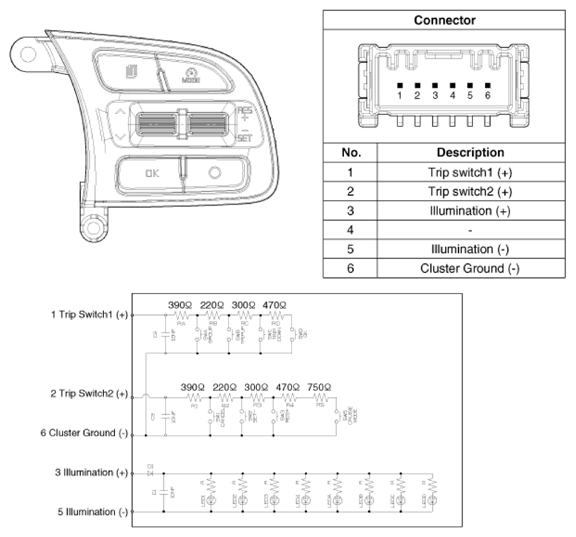

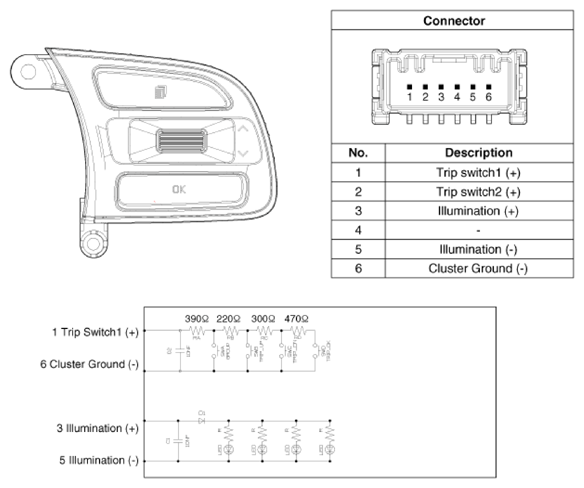

[Trip]
 Courtesy of KIA MOTORS AMERICA, INC.
|

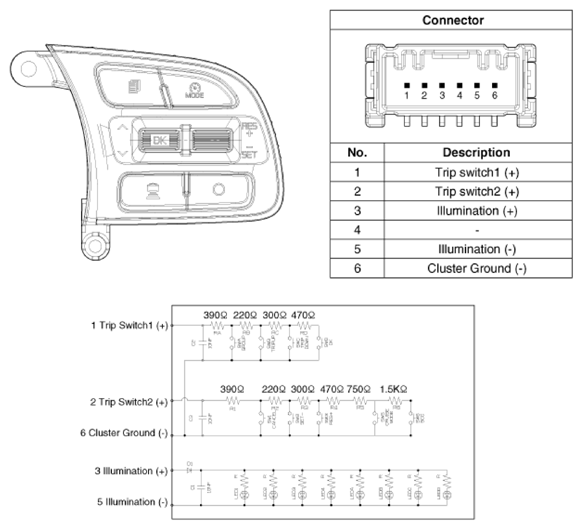

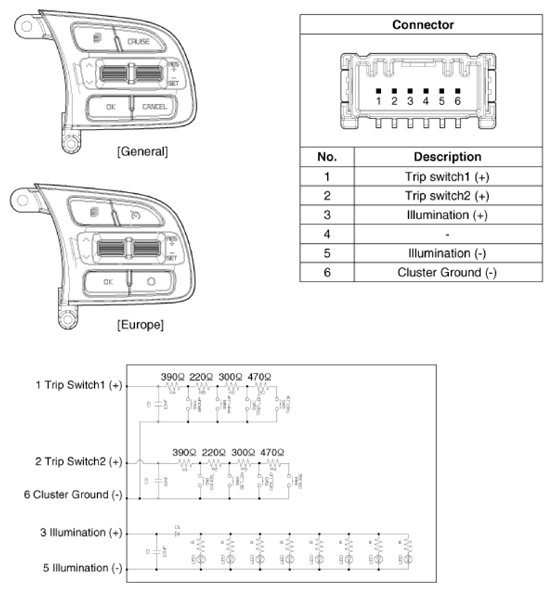

[Trip + Cruise]
 Courtesy of KIA MOTORS AMERICA, INC.
|

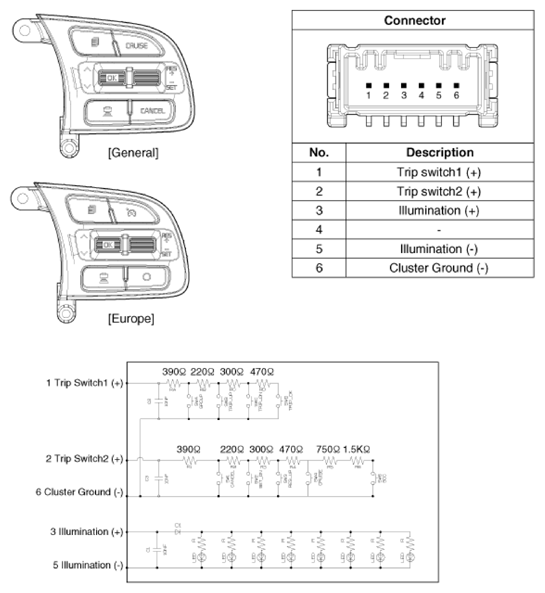

[Trip + Cruise + SCC]
 Courtesy of KIA MOTORS AMERICA, INC.
|
[Trip + Cruise + SLD] (Europe Only)
 Courtesy of KIA MOTORS AMERICA, INC.
|
[Trip + SCC + SLD] (Europe Only)
 Courtesy of KIA MOTORS AMERICA, INC.
|
