Components And Components Location: Component

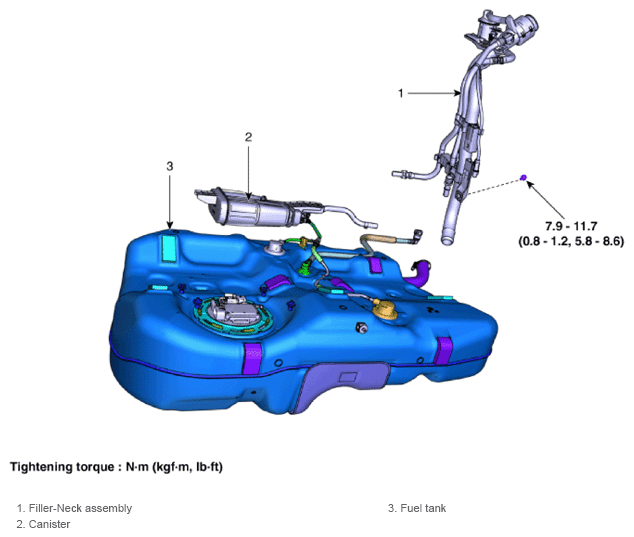

Fig 1: Filler - Neck Assembly Components Location With Torque Specification
G13837568Courtesy of KIA MOTORS AMERICA, INC.
