Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

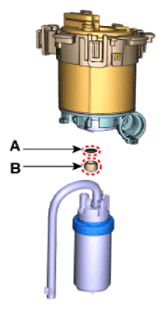

Be careful not to miss the O-ring (A) and spacer (B) when assembling the fuel pump.

Courtesy of KIA MOTORS AMERICA, INC.

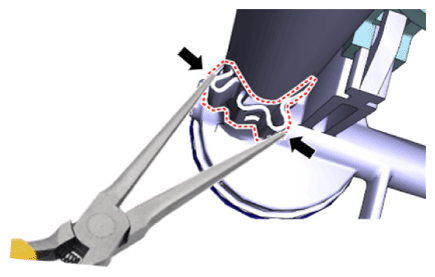

Install the clip firmly by using the tool.

Courtesy of KIA MOTORS AMERICA, INC.

Be careful not to miss the O-ring (A) when assembling the plate.

Courtesy of KIA MOTORS AMERICA, INC.
