Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

Remove the front door trim.
(Refer to " Replacement ")
Using a screwdriver or remover, remove the outside rear view mirror cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

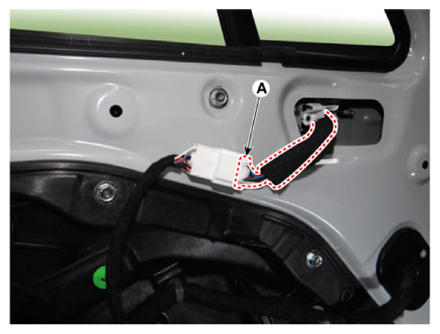

Disconnect the outside rear view mirror connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

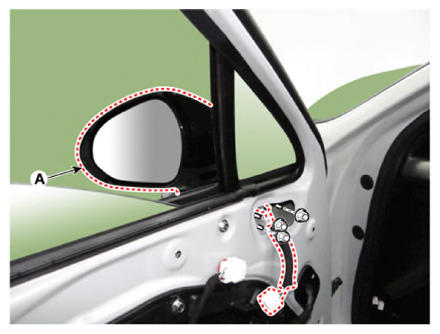

After loosening the mounting nuts, remove the outside rear view mirror (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 Kgf.m, 5.1 - 8.0 lb.ft, 60.8 - 95.5 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
