Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Put on gloves to prevent hand injuries.

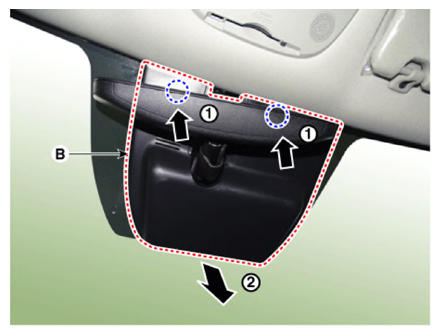

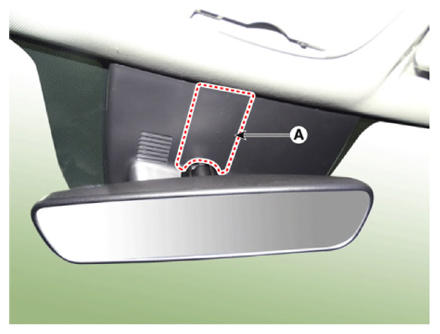

  1. Remove the multifunction sensor cover (A), (B).
    G13835511Courtesy of KIA MOTORS AMERICA, INC.
    G13835512Courtesy of KIA MOTORS AMERICA, INC.

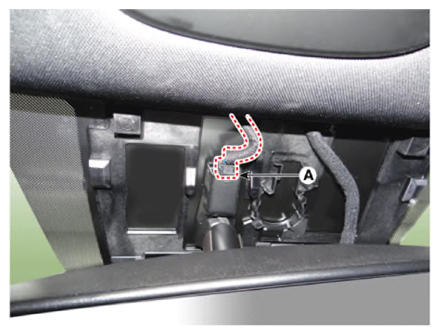

  2. Disconnect the ECM mirror connector (A).
    G13835513Courtesy of KIA MOTORS AMERICA, INC.

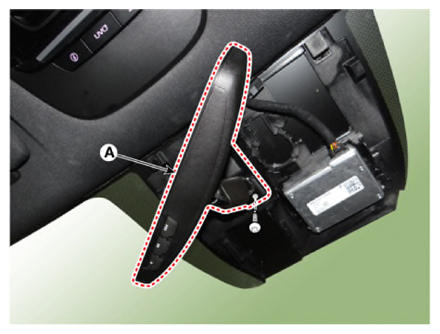

  3. Loosen the mounted screws and push the ECM mirror base upward to remove the ECM mirror assembly (A).
    G13835514Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.

    Information

    • Make sure the connector is connected properly.
    • Be careful not to damage the windshield glass.
