Interior Antenna 1

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the surround view monitor (SVM) unit.

    (Refer to " Removal  ")

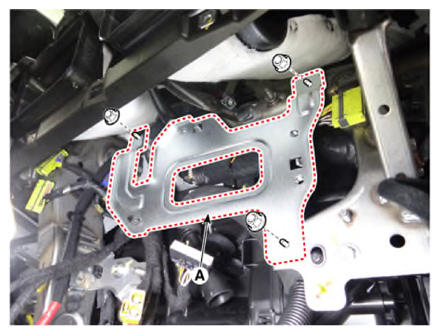

  3. Remove the SVM bracket (A) by loosening the mounting nuts.
    G13836307Courtesy of KIA MOTORS AMERICA, INC.

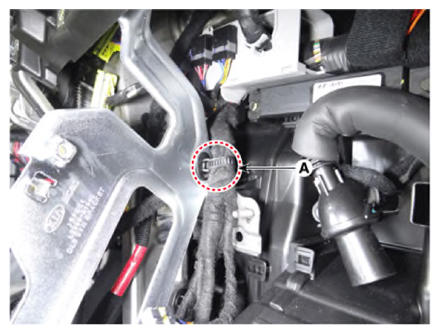

  4. Remove the fixing clip (A) from the SVM bracket.
    G13836308Courtesy of KIA MOTORS AMERICA, INC.

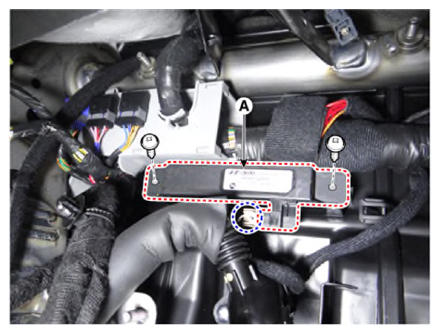

  5. Remove the interior antenna 1 (A) by loosening the screws after disconnecting the connector.
    G13836309Courtesy of KIA MOTORS AMERICA, INC.
