Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.

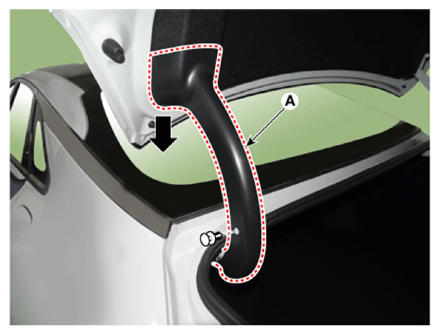

  1. Loosen the mounting clips and remove the trunk lid side cover (A).
    G13835347Courtesy of KIA MOTORS AMERICA, INC.

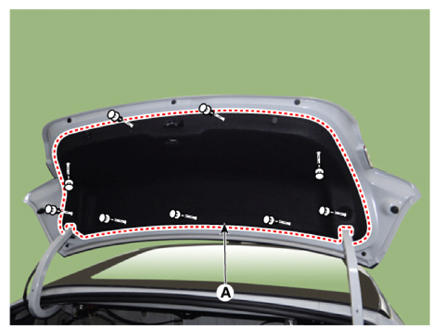

  2. Loosen the mounting clips and remove the trunk lid trim (A).
    G13835348Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.

    Information

    Replace any damaged clips.
