Home >> Kia >> 2021 >> K5 GT-Line, AWD >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System - 1.6L >> Turbo Manifold Module, Exhaust Manifold And Catalytic Converter >> Components And Components Location >> Components
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Components And Components Location: Components

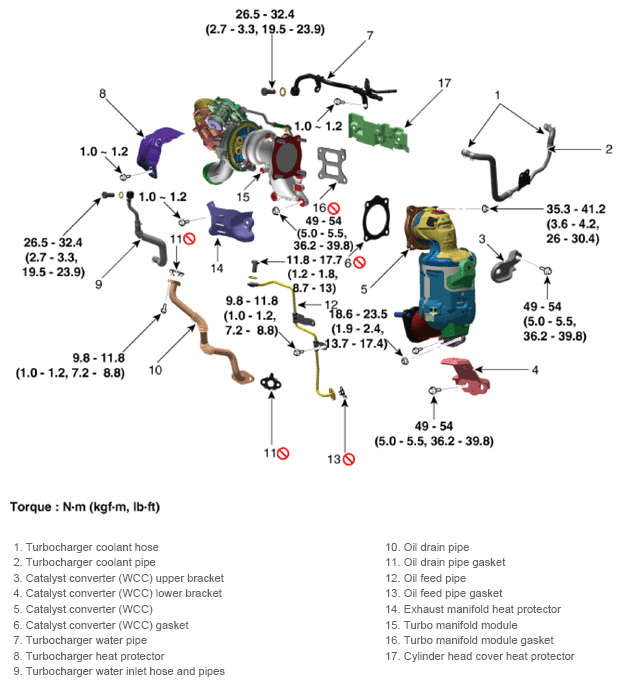

Fig 1: Turbo Manifold Module And Catalytic Converter Components Location With Torque Specification
G13833524Courtesy of KIA MOTORS AMERICA, INC.

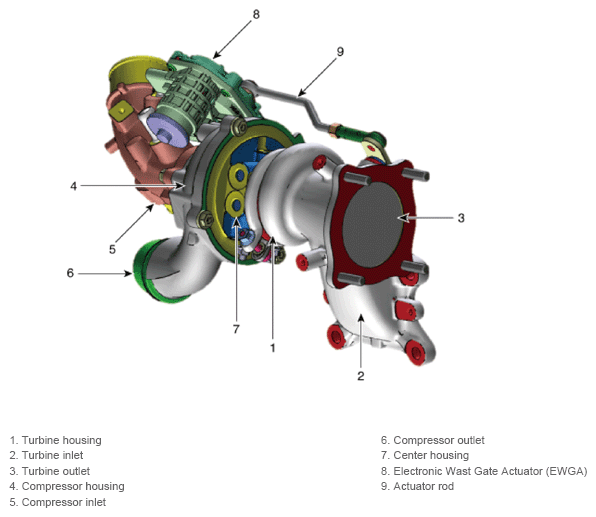

G13833525Courtesy of KIA MOTORS AMERICA, INC.
