Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal.
    CAUTION: After disconnecting the cables, wait at least 3 minutes.
  2. Remove the crash pad lower panel.

    (Refer to " Replacement  ")

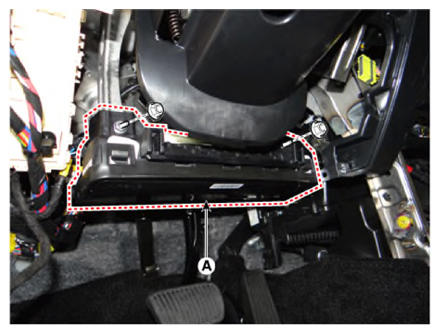

  3. Remove the knee airbag module (A) by loosening the mounting nuts.

    Tightening Torque: 0.7 ~ 1.1 kgf.m

    G13835127Courtesy of KIA MOTORS AMERICA, INC.

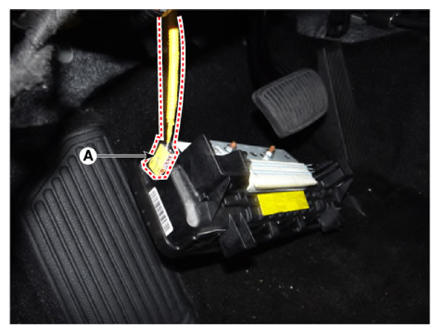

  4. Disconnect the knee airbag connector (A) by pressing the lock pin.
    G13835128Courtesy of KIA MOTORS AMERICA, INC.
