Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

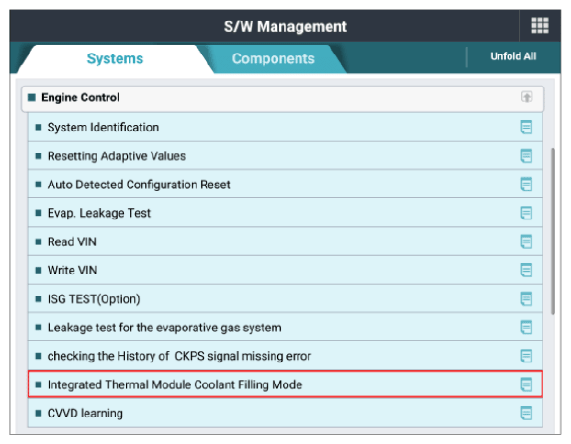

G13810076Courtesy of KIA MOTORS AMERICA, INC.

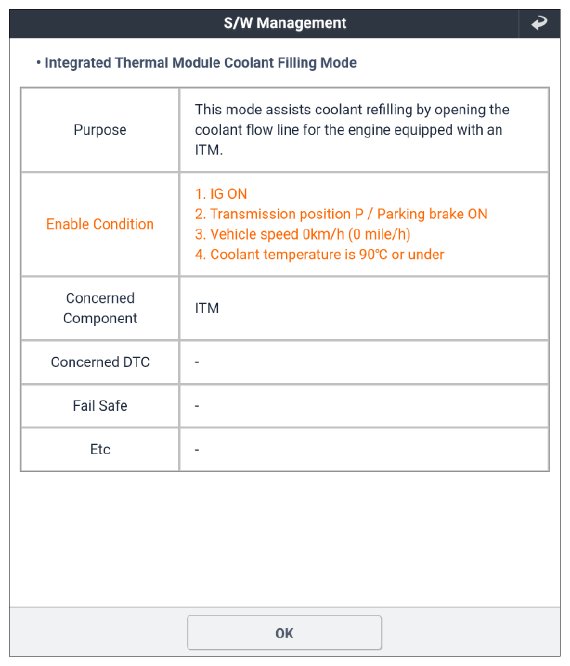

G13810077Courtesy of KIA MOTORS AMERICA, INC.

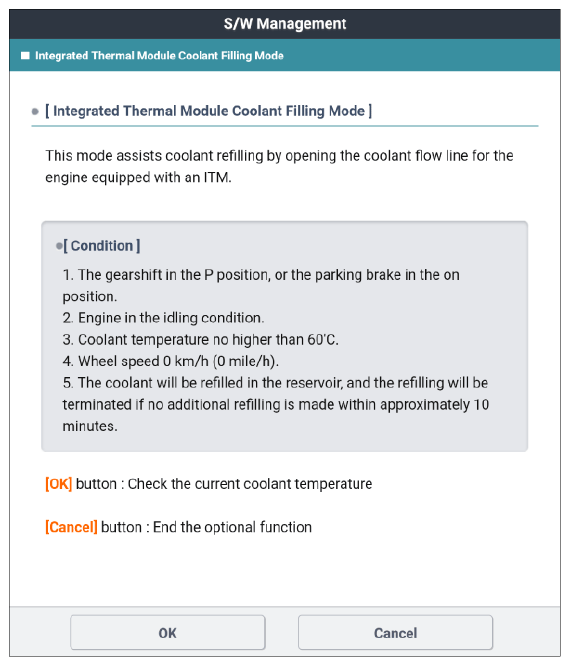

G13810078Courtesy of KIA MOTORS AMERICA, INC.

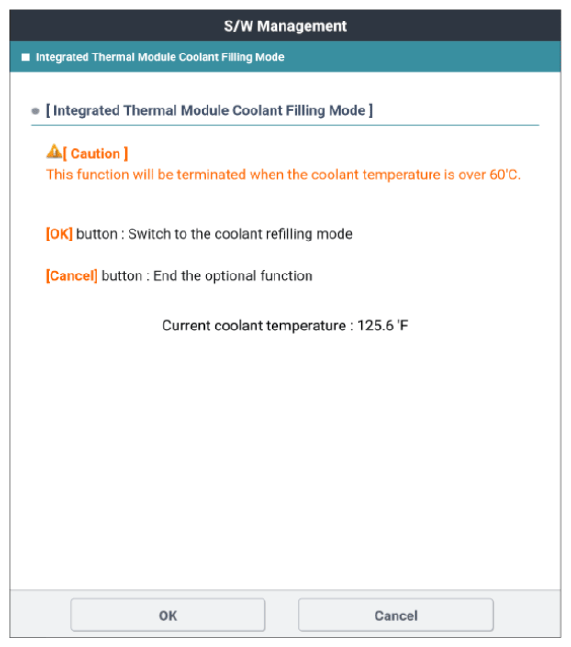

G13810079Courtesy of KIA MOTORS AMERICA, INC.

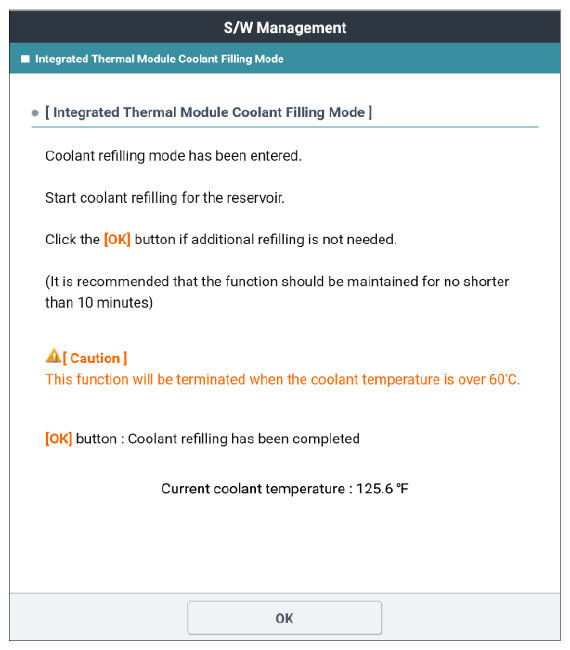

G13810080Courtesy of KIA MOTORS AMERICA, INC.

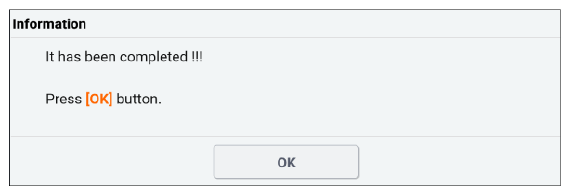

G13810081Courtesy of KIA MOTORS AMERICA, INC.
