Components And Components Location: Component: [2WD]

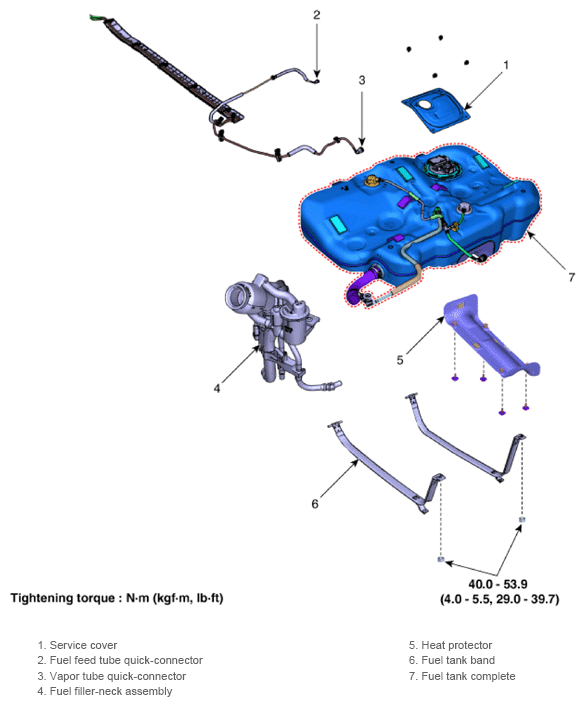

Fig 1: Fuel Tank Components Location With Torque Specification (2WD)
G13834031Courtesy of KIA MOTORS AMERICA, INC.
