Front Door Antenna

  1. Disconnect the negative battery terminal.
  2. Remove the front door trim.

    (Refer to " Replacement  ")

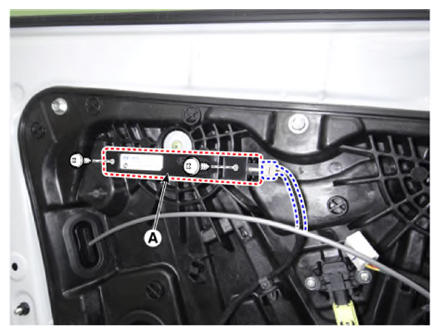

  3. Remove the front door antenna (A) by loosening the screws after disconnecting the connector.
    G13836315Courtesy of KIA MOTORS AMERICA, INC.
