Component Inspection
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

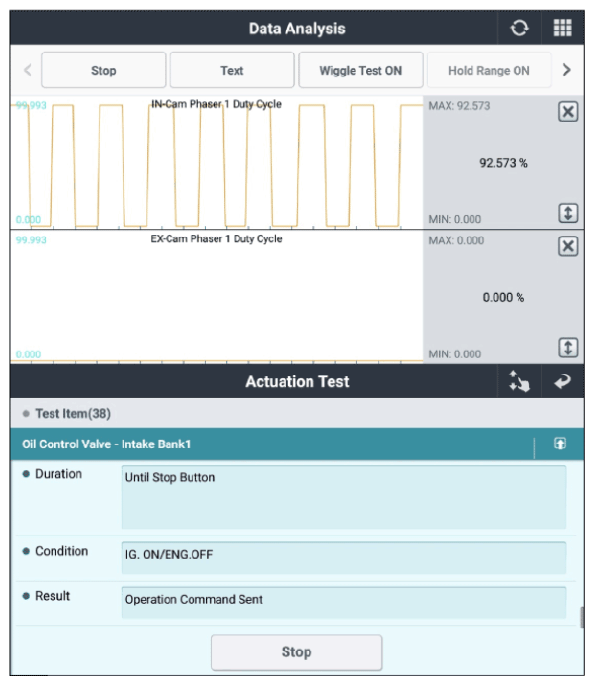

Fig.1 |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Go to "Inspect OCV - In (Bank 1)" procedure.
| Inspect OCV - In (Bank 1) | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
OCV - In (Bank 1) (component side) | 2 (power) | OCV - In (Bank 1) (component side) | 1 (control) | Approx. 6.9 to 7.9Ω (20°C (68°F)) |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the OCV - In (Bank 1) and go to "VERIFICATION OF REPAIR " procedure.
