Removal And Installation

Remove the engine cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")
Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")
Drain the coolant.
(Refer to Cooling System - "COOLANT ")
Disconnect the battery negative terminal.
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

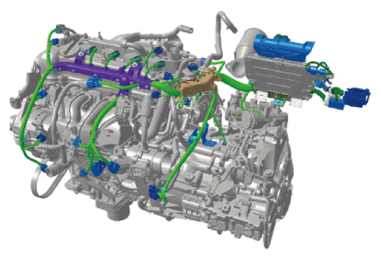

Disconnect the engine wiring connector and harness clamp and disconnect the wiring from intake manifold.

Courtesy of KIA MOTORS AMERICA, INC.

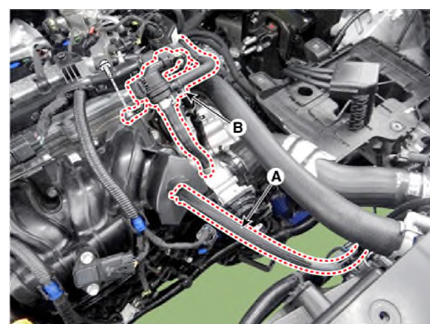

Disconnect the RCV solenoid valve connector (A) and booster pressure sensor (BPS) connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

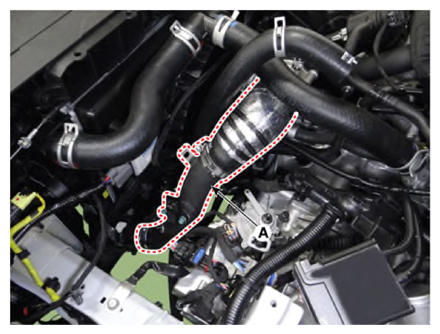

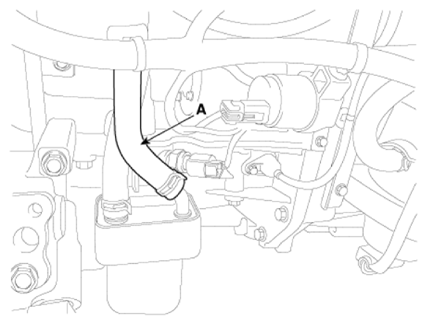

Disconnect the intercooler outlet hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

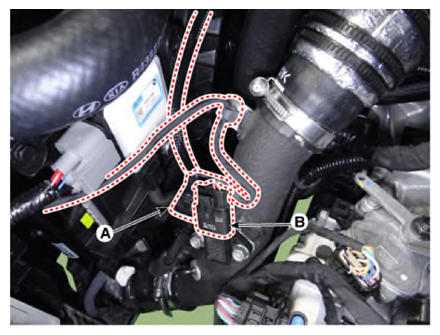

Disconnect the RCV solenoid valve hose (A), and then remove the purge control solenoid valve (PCSV) (B).

Courtesy of KIA MOTORS AMERICA, INC.

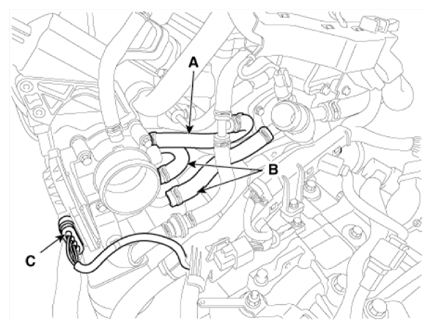

Disconnect the vacuum hose (A), throttle body coolant hoses (B), and electric throttle control (ETC) module connector (C),

Courtesy of KIA MOTORS AMERICA, INC.

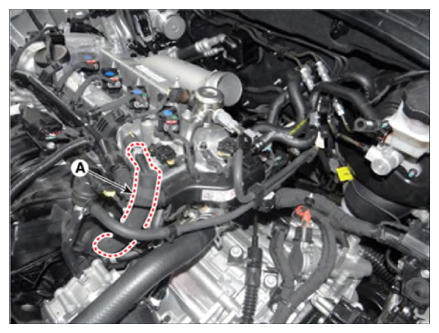

Disconnect the oil cooler hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the positive crankcase ventilation (PCV) hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

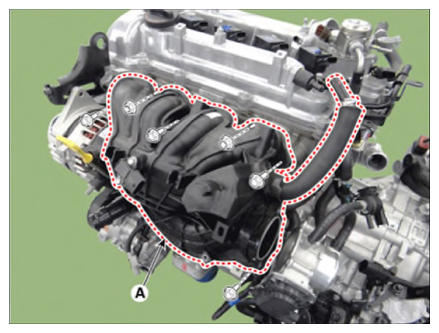

Remove the intake manifold (A) with the gasket.
Tightening torque:

18.6-23.5 N.m (1.9-2.4 kgf.m, 13.7-17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When installing, replace with new gaskets.

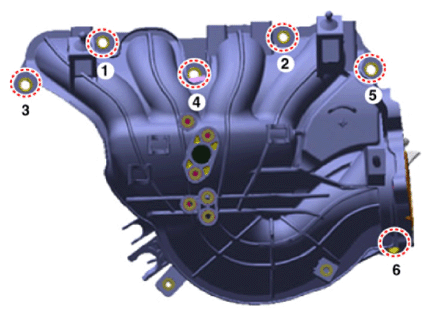

- When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.

  Fig 1: Intake Manifold Bolts And Nuts Tightening Sequence
  Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
