Passenger's side

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center lower panel.

    (Refer to Body - "CRASH PAD CENTER LOWER PANEL ")

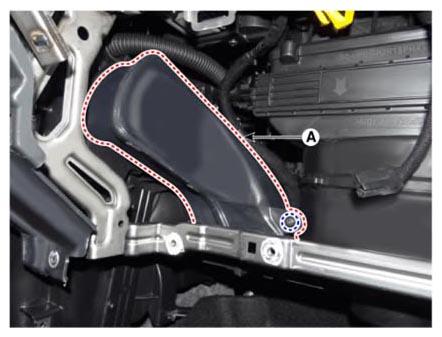

  3. Remove the passenger's side shower duct (A) after loosening the screw.
    G14557212Courtesy of KIA MOTORS AMERICA, INC.

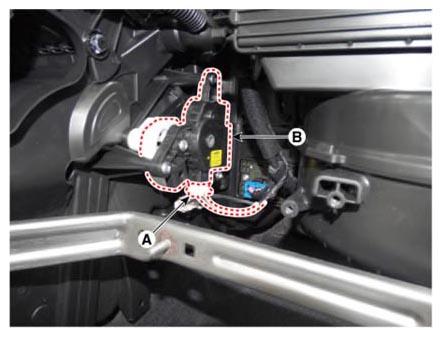

  4. Disconnect the connector (B) and then remove the passenger's side temperature control actuator (A) after loosening the mounting screws.
    G14557213Courtesy of KIA MOTORS AMERICA, INC.
  5. To install, reverse the removal procedure.
