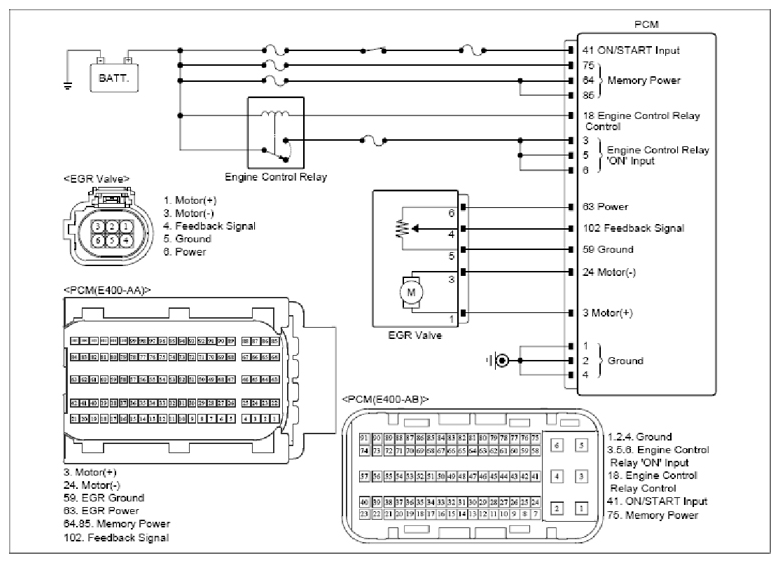

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
EGR connector | 5 (ground) | PCM connector | 59 (ground) | Approx. below 1Ω |
| EGR connector | 4 (signal) | PCM connector | 102 (signal) | Approx. below 1Ω | |
| EGR connector | 6 (power) | PCM connector | 63 (power) | Approx. below 1Ω | |
| EGR connector | 3 (-) | PCM connector | 24 (-) | Approx. below 1Ω | |
| EGR connector | 1 (+) | PCM connector | 3 (+) | Approx. below 1Ω | |
| EGR connector | 3 (-) | Chassis ground | - | ∞ (infinite)Ω | |
| EGR connector | 1 (+) | Chassis ground | - | ∞ (infinite)Ω | |
| EGR connector | 4 (signal) | Chassis ground | - | ∞ (infinite)Ω | |
|
EGR connector | 5 (ground) | Chassis ground | - | Approx. 0V |
| EGR connector | 4 (signal) | Chassis ground | - | Approx. 0V | |
| EGR connector | 6 (power) | Chassis ground | - | Approx. 5V | |
| EGR connector | 3 (-) | Chassis ground | - | Approx. 11.2V | |
| EGR connector | 1 (+) | Chassis ground | - | Approx. 11.5V | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good
- If no problems were found with the circuits or connectors, replace the EGR valve and go to "VERIFICATION OF REPAIR " procedure.
