Monitor KDS Data

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  2. Engine "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Monitor "Wheel speed sensor" parameters in "Current Data" with KDS.
  3. Lift the vehicle & Gear level position "D" & No brake applied.

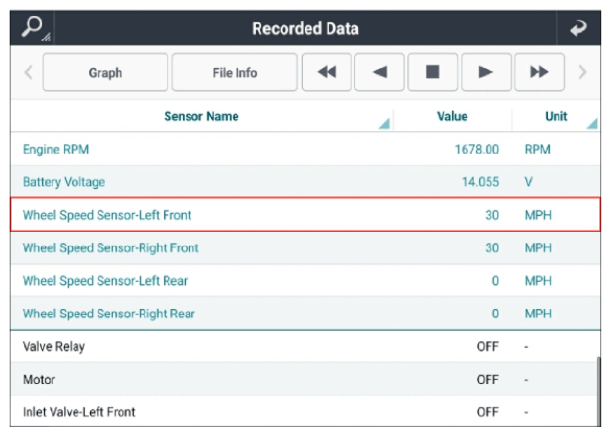

Fig.1
G13301424Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
