Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.

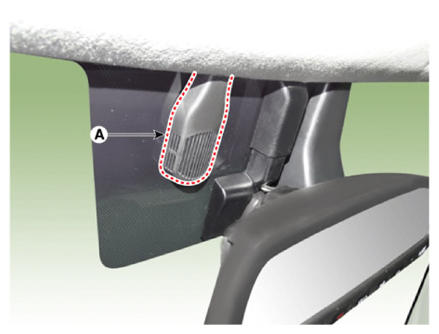

  2. Remove the auto defogging cover (A).
    G13306424Courtesy of KIA MOTORS AMERICA, INC.

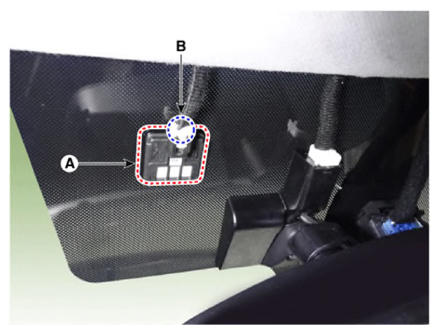

  3. Disconnect the connector (B) and then remove the auto defogging sensor (A).
    G13306425Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
