Radiator cap
WARNING: This page is about a different variant/trim than selected.

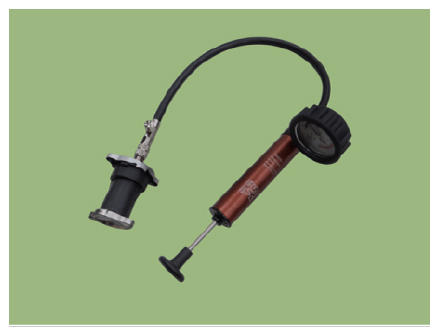

- Remove the radiator cap, wet its seal with engine coolant, then install it on a pressure tester.
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Apply a pressure of 93.16 - 122.58 kPa (0.95 - 1.25 kg/cm2
, 13.51 - 17.78 psi).
- Check for a drop in pressure.
- If the pressure drops, replace the cap.
