Connecting Rod Specifications
| Class |
Mark |
Inside Diameter |
| 0 |
A |
48.000 - 48.006 mm (1.88976 - 1.89000 in.) |
| 1 |
B |
48.006-48.012 mm (1.89000 - 1.89023 in.) |
| 2 |
C |
48.012 - 48.018 mm (1.89023 - 1.89047 in.) |

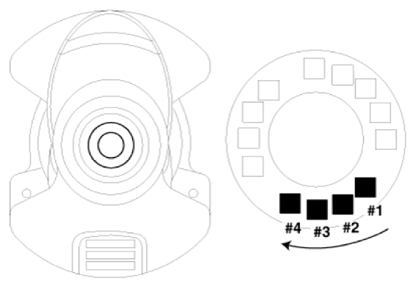

Crankshaft Pin Identification Mark
 Courtesy of KIA MOTORS AMERICA, INC.
|
NOTE:
Conform to read stamping order as shown arrow direction from #1.
