Circuit Inspection

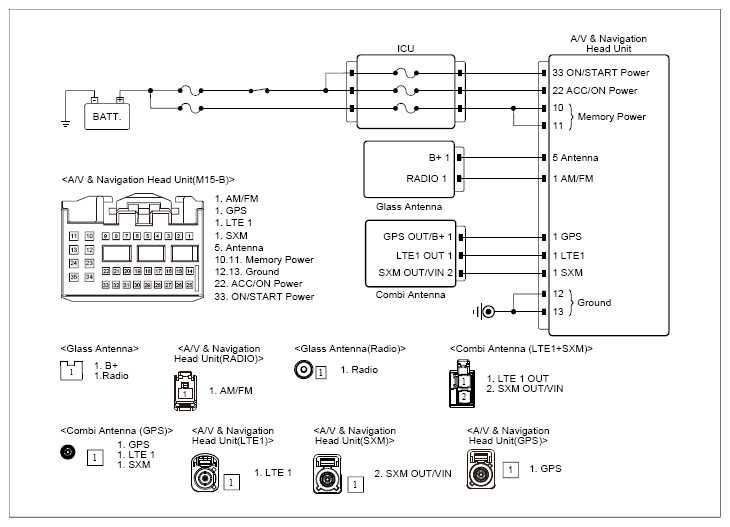

G13301199

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF" Disconnect the electrical connector(s) from the concerned component.	Combination antenna connector	2 (SXM OUT/VIN)	A/V & Navigation head unit connector	1 (SXM)	Approx. below 1Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the A/V & Navigation head unit and go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the combination antenna and go to "VERIFICATION OF REPAIR " procedure.
