Repair Procedures: Replacement: Bulb

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly.

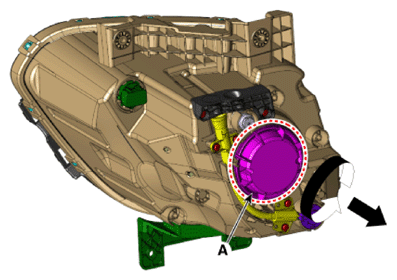

  2. Remove the dust caps (A) after turning in the counterclockwise direction.
    G13282589Courtesy of KIA MOTORS AMERICA, INC.

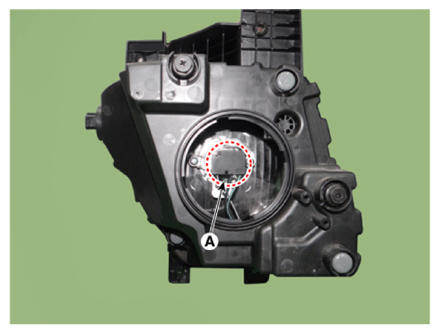

  3. Disconnect the high/low beam bulb connector (A).
    G13282590Courtesy of KIA MOTORS AMERICA, INC.

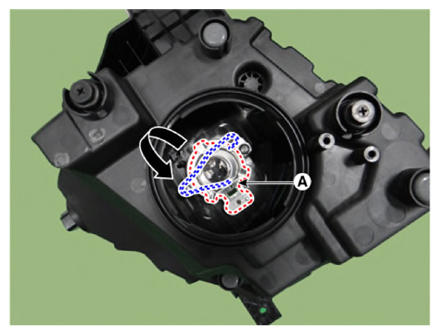

  4. Replace the bulb socket (A) by pushing the fixing clip.
    G13282591Courtesy of KIA MOTORS AMERICA, INC.
