Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

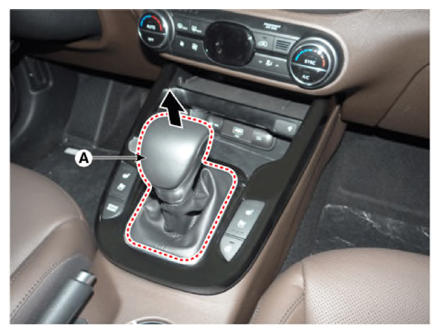

  1. After separating the boots from the console upper cover, remove the knob (A) by pulling it in the direction of arrow.
    G13282375Courtesy of KIA MOTORS AMERICA, INC.

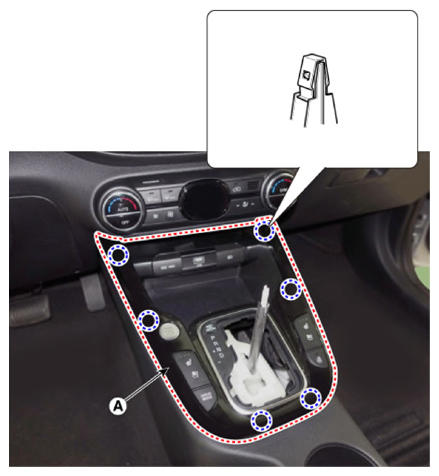

  2. Remove the console upper cover (A).
    G13282376Courtesy of KIA MOTORS AMERICA, INC.

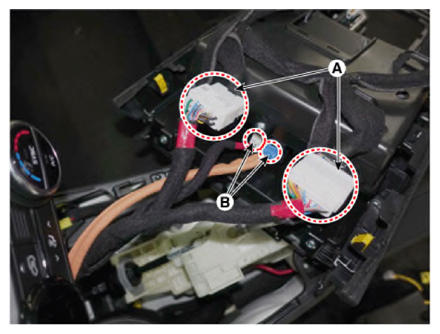

  3. Disconnect the extension connector (A) and multimedia jack connectors (B).
    G13282377Courtesy of KIA MOTORS AMERICA, INC.

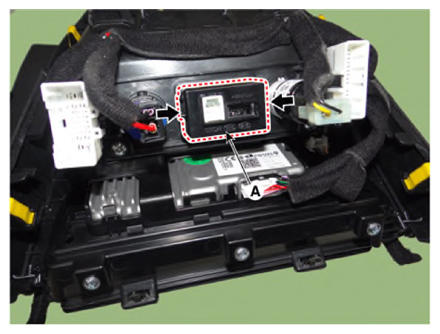

  4. Remove the multimedia jack (A) by pressing the hooks.
G13282378Courtesy of KIA MOTORS AMERICA, INC.
