Disassembly And Assembly

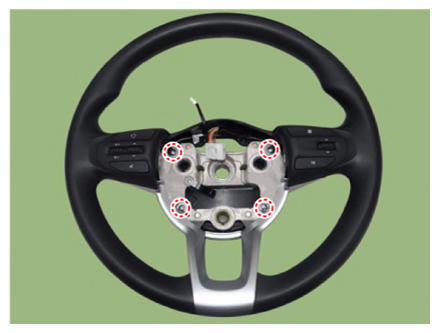

- Loosen the steering wheel screw.
 Courtesy of KIA MOTORS AMERICA, INC.
|

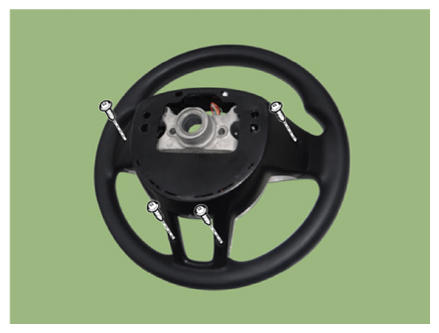

- Loosen the steering wheel lower cover srew.
 Courtesy of KIA MOTORS AMERICA, INC.
|

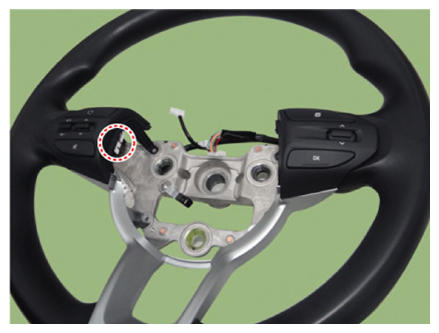

- Disconnect the switch connector.
 Courtesy of KIA MOTORS AMERICA, INC.
|

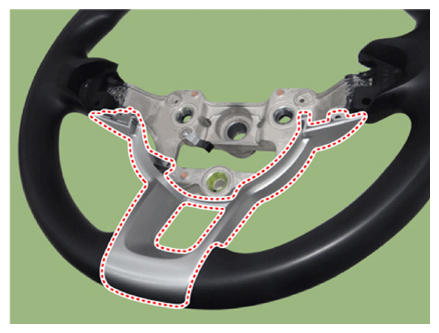

- Remove the bezel.
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
