Variant Coding Procedure

■ Off-line type on KDS (This can be used when not connecting to internet)

1. Ignition "OFF", connect KDS
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.

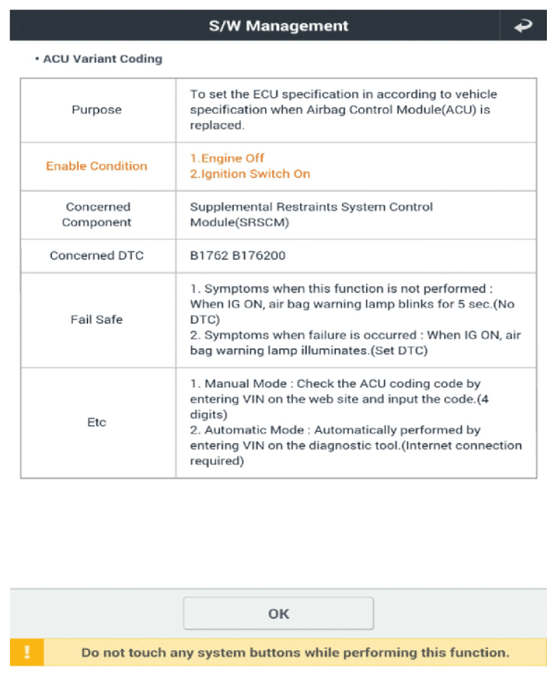

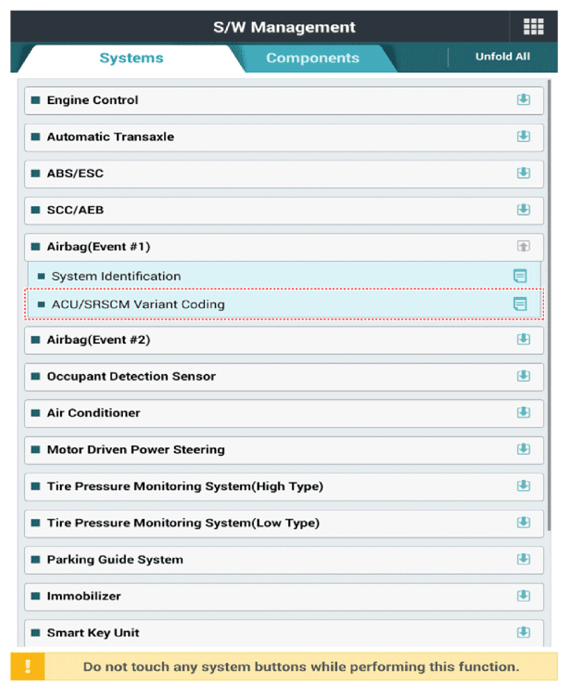

3. Select ACU Variant coding mode.

   Courtesy of KIA MOTORS AMERICA, INC.

4. Follow steps on the screen as below.

   Courtesy of KIA MOTORS AMERICA, INC.

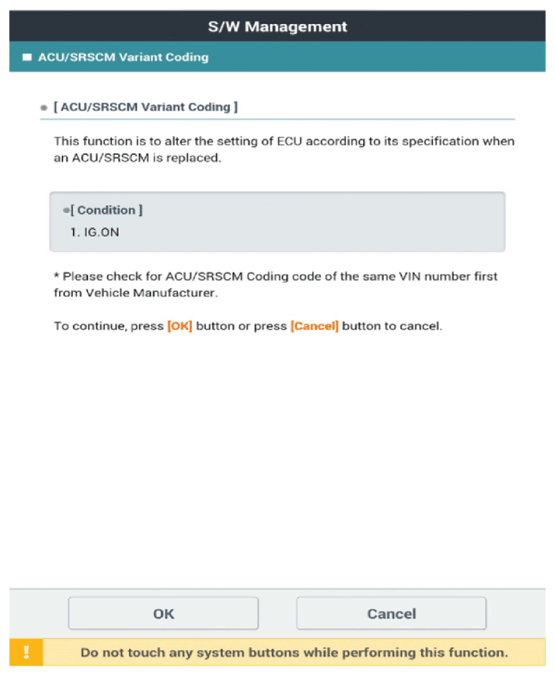

   1. Initial ACU Variant Coding screen

      Courtesy of KIA MOTORS AMERICA, INC.

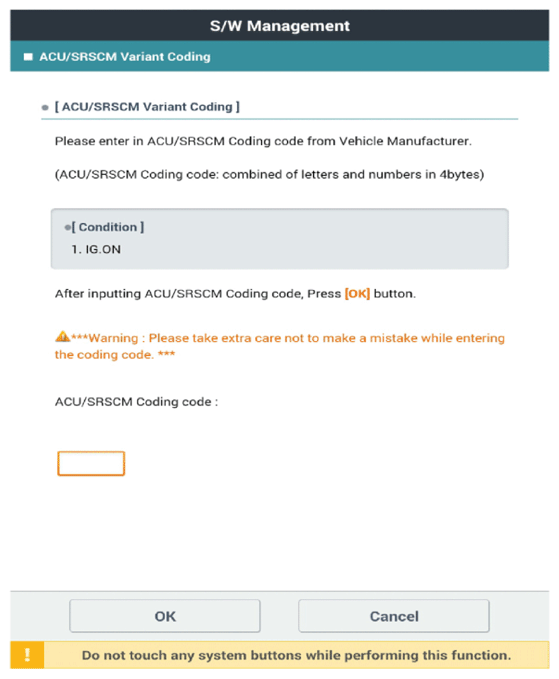

   2. Variant coding"s proceeding screen-2

      Courtesy of KIA MOTORS AMERICA, INC.

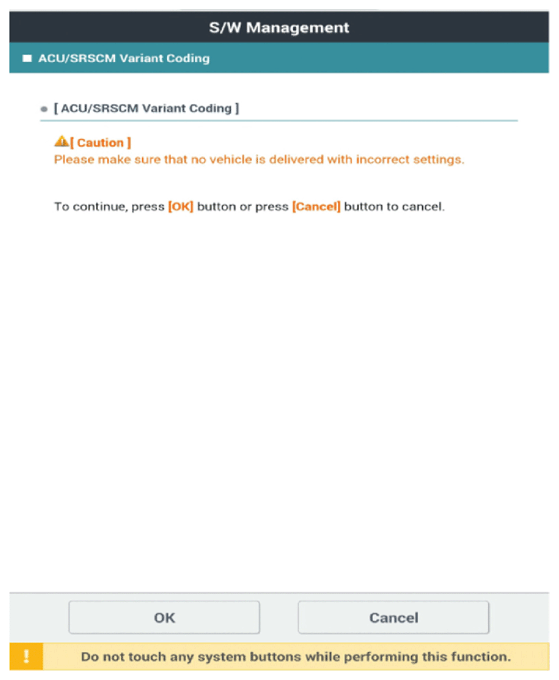

   3. Variant coding"s proceeding screen-3

   Courtesy of KIA MOTORS AMERICA, INC.

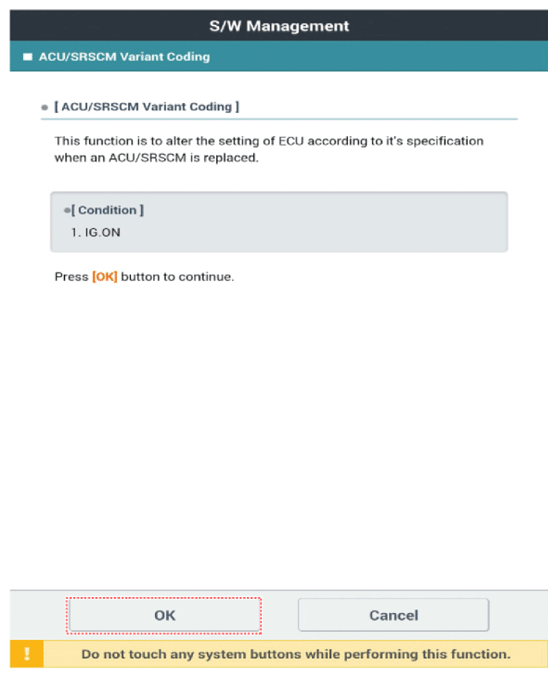

5. Variant coding is completed

   Courtesy of KIA MOTORS AMERICA, INC.

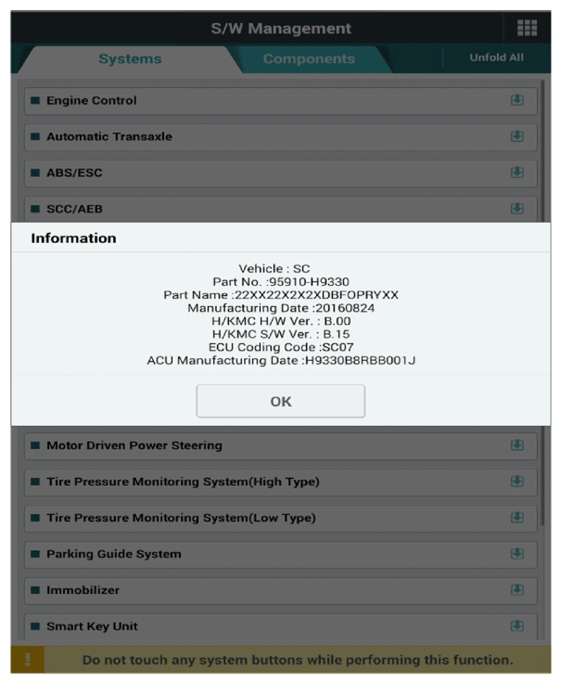

   CAUTION: Screen of rechecking ACU Coding code"s entering

   Courtesy of KIA MOTORS AMERICA, INC.
