Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

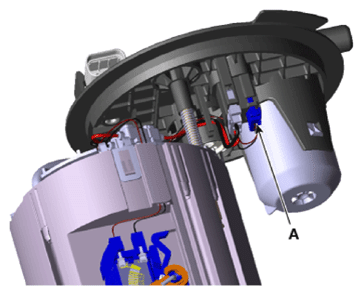

  2. Disconnect the fuel sender connector (A).
    G13412442Courtesy of KIA MOTORS AMERICA, INC.

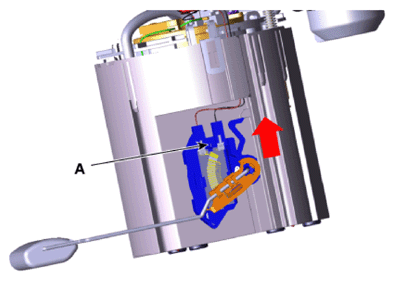

  3. Remove the fuel sender (A) in the direction of an arrow.
    G13412443Courtesy of KIA MOTORS AMERICA, INC.
    G13412444Courtesy of KIA MOTORS AMERICA, INC.
