[Front Heated Oxygen Sensor]
- Disconnect the negative battery terminal.

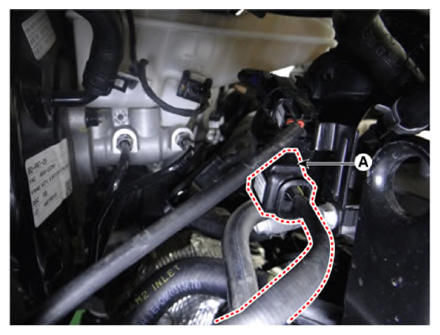

- Disconnect the heated oxygen sensor connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

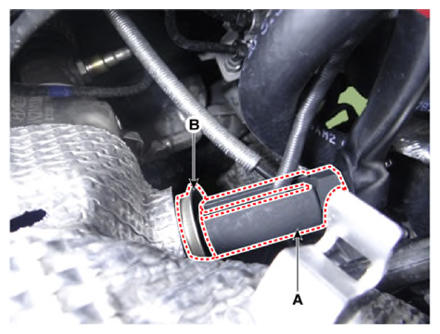

- Remove the heated oxygen sensor (B) using the SST (09392-1Y100) (A).
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 11.0 - 14.3 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
