Repair Procedures: Installation
NOTE:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.

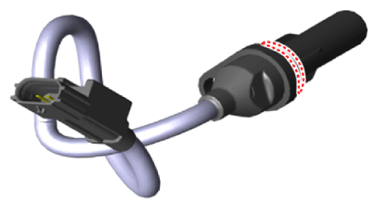

- Apply the engine oil to the O-ring.
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Insert the sensor in the installation hole and be careful not to damage.
- Install in the reverse order of removal.
