Repair Procedures: Removal: [Exhaust]
- Disconnect the negative battery terminal.

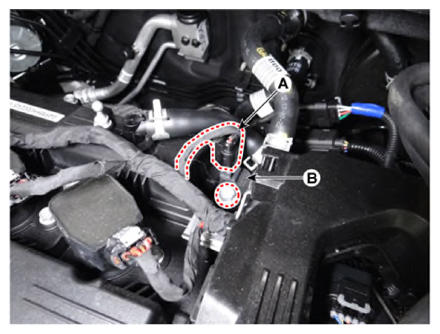

- Disconnect the camshaft position sensor (CMPS) connector (A).
- Remove the CMPS (B) after loosening the mounting bolt.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
