Charging System: Alternator: Specifications: Specification
| Item |
Specification |
| Rated voltage |
13.5V, 130A |
| Speed in use |
1, 000 - 18, 000 rpm |
| Voltage regulator |
IC Regulator built-in type |
| Regulator Setting Voltage |
External mode |
10.6 - 16 ± 0.3V |
| Internal mode |
14.5 ± 0.3V |

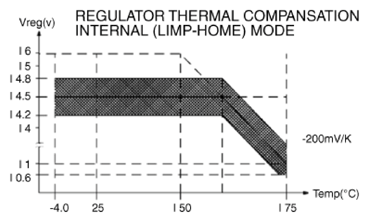

| Temperature Gradient |
External mode |
0 ± 2 mV/°C |
| Internal mode |
-3.5 ± 2 mV/°C |
 Courtesy of KIA MOTORS AMERICA, INC.
|
