Repair Procedures: Disassembly

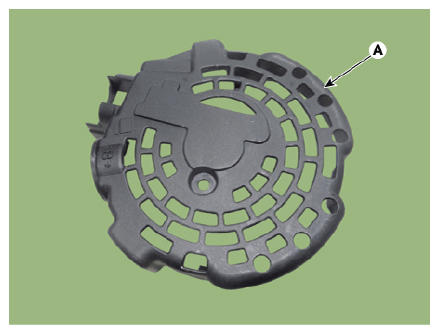

- Remove The Rear Cover (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|

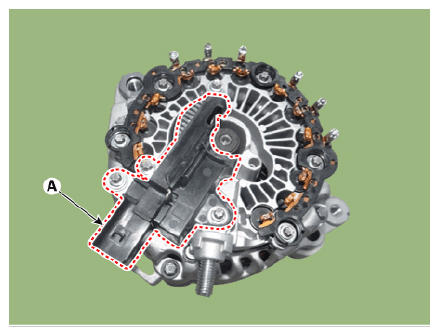

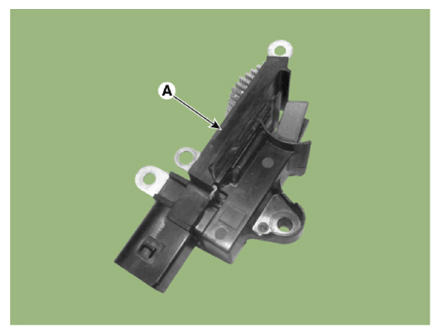

- Remove The Mounting Bolts (A) And The Regulator Assembly.
NOTE:
- When Installing, Replace With New Oap Cap.
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|

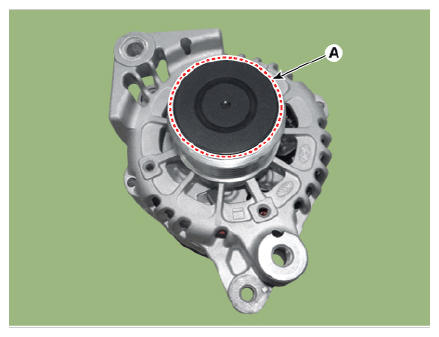

- Remove The Oap Cap.
 Courtesy of KIA MOTORS AMERICA, INC.
|
NOTE:
- When Installing, Replace With New Oap Cap.

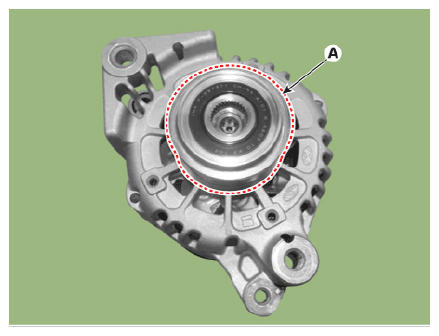

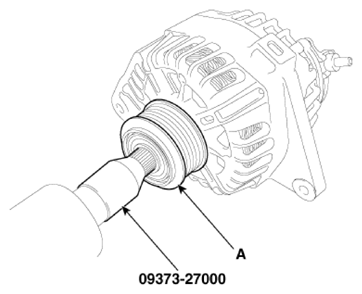

- Remove The Oap Pulley (A) Using The Special Tool (09373-27000).
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|

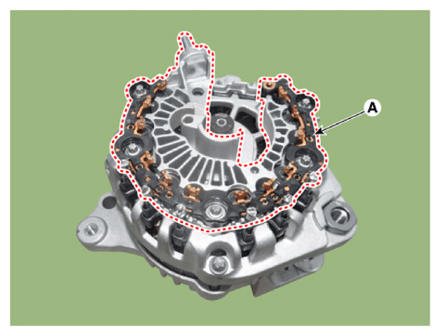

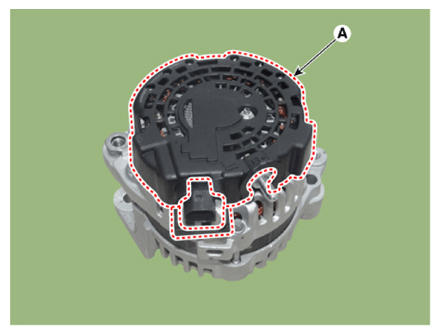

- Remove The Rectifier Assembly (A) After Disconnecting The Stator Leads.
 Courtesy of KIA MOTORS AMERICA, INC.
|

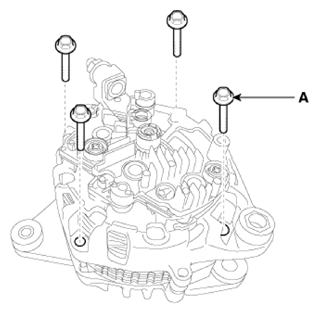

- Remove The 4 Through Bolts (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

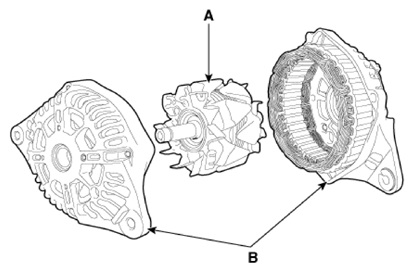

- Disconnect The Rotor (A) And Bracket (B).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install In The Reverse Order Of Removal.
