Tailgate Open Switch

Disconnect the negative (-) battery terminal.
Remove the back view camera assembly.
(Refer to Body Electrical System - "BACK VIEW CAMERA SYSTEM ")

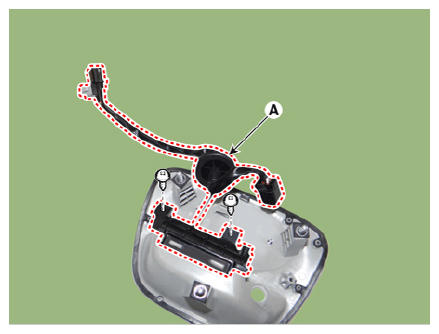

Remove the tailgate open switch assembly (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.
