Door Outside Handle

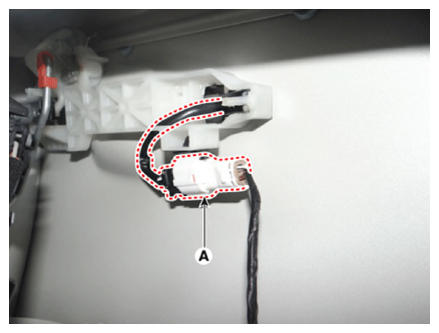

- Disconnect the front door outside handle connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

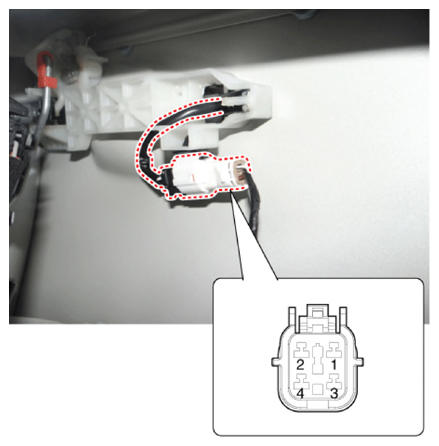

- Check for continuity between terminals No 2 and No 4.
 Courtesy of KIA MOTORS AMERICA, INC.
|
| No. |
Description |
| 1 |
Door antenna 1 |
| 2 |
Door lock/unlock button 1 |
| 3 |
Door antenna 2 |
| 4 |
Door lock/unlock button 2 |
