Toe Adjustment

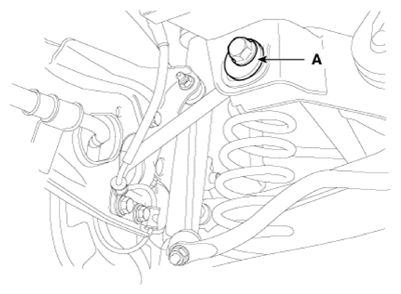

- Loosen the nut holding the assist arm cam bolt (A).
- Adjust rear toe by turning the rear assist arm cam bolt (A) clockwise or counter clockwise. Toe adjustment should be made by turning the right and left cam bolts by the same amount.
Toe-in
Total: 0.17°±0.2°
Individual: 0.085°±0.1°
 Courtesy of KIA MOTORS AMERICA, INC.
|
