Special Service Tools: Notes

Tool Name/Number	Illustration	Description

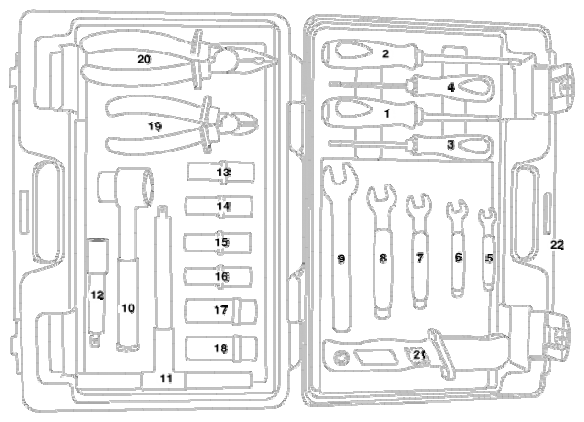

Insulated Tool Set 0K375-4U000	Courtesy of KIA MOTORS AMERICA, INC.	Used for measuring or work to high voltage parts -22EA components (Include case)

Courtesy of KIA MOTORS AMERICA, INC.

No.	Tool Name	Tool Number	Illustration
1	Insulated Flat Head Screwdriver-6"	0K375-4U100	Courtesy of KIA MOTORS AMERICA, INC.
2	Insulated Phillips Screwdriver-6"	0K375-4U110	Courtesy of KIA MOTORS AMERICA, INC.
3	Insulated Flat Head Screwdriver-4"	0K375-4U120	Courtesy of KIA MOTORS AMERICA, INC.
4	Insulated Phillips Screwdriver-4"	0K375-4U130	Courtesy of KIA MOTORS AMERICA, INC.
5	Insulated Spanner-8mm	0K375-4U140	Courtesy of KIA MOTORS AMERICA, INC.
6	Insulated Spanner-10mm	0K375-4U150	Courtesy of KIA MOTORS AMERICA, INC.
7	Insulated Spanner-12mm	0K375-4U160	Courtesy of KIA MOTORS AMERICA, INC.
8	Insulated Spanner-12mm	0K375-4U170	Courtesy of KIA MOTORS AMERICA, INC.
9	Insulated Spanner-17mm	0K375-4U180	Courtesy of KIA MOTORS AMERICA, INC.
10	Insulated Ratchet Wrench-3/8"	0K375-4U190	Courtesy of KIA MOTORS AMERICA, INC.
11	Insulated T-Socket Wrench-3/8"	0K375-4U200	Courtesy of KIA MOTORS AMERICA, INC.
12	Insulated Socket Extension Bar-3/8"	0K375-4U210	Courtesy of KIA MOTORS AMERICA, INC.
13	Insulated Socket-8mm	0K375-4U220	Courtesy of KIA MOTORS AMERICA, INC.
14	Insulated Socket-10mm	0K375-4U230	Courtesy of KIA MOTORS AMERICA, INC.
15	Insulated Socket-12mm	0K375-4U240	Courtesy of KIA MOTORS AMERICA, INC.
16	Insulated Socket-14mm	0K375-4U250	Courtesy of KIA MOTORS AMERICA, INC.
17	Insulated Socket-17mm	0K375-4U260	Courtesy of KIA MOTORS AMERICA, INC.
18	Insulated Socket-19mm	0K375-4U270	Courtesy of KIA MOTORS AMERICA, INC.
19	Insulated Nippers-6"	0K375-4U280	Courtesy of KIA MOTORS AMERICA, INC.
20	Insulated Pliers-8"	0K375-4U290	Courtesy of KIA MOTORS AMERICA, INC.
21	Insulated Cutter	0K375-4U300	Courtesy of KIA MOTORS AMERICA, INC.
22	Insulated Tool Box	0K375-4U310	Courtesy of KIA MOTORS AMERICA, INC.
