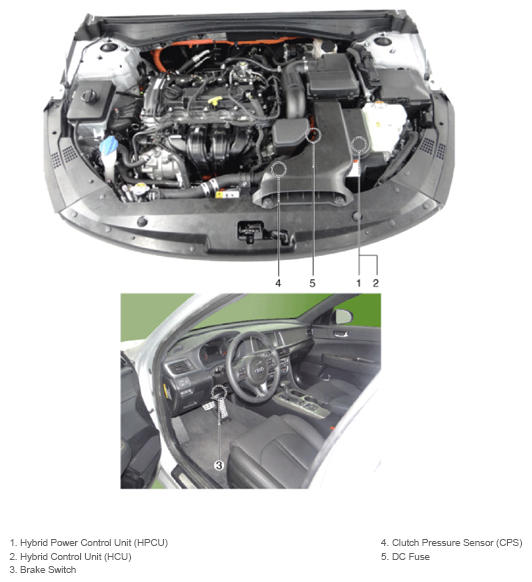

Components Location
 Courtesy of KIA MOTORS AMERICA, INC.
|

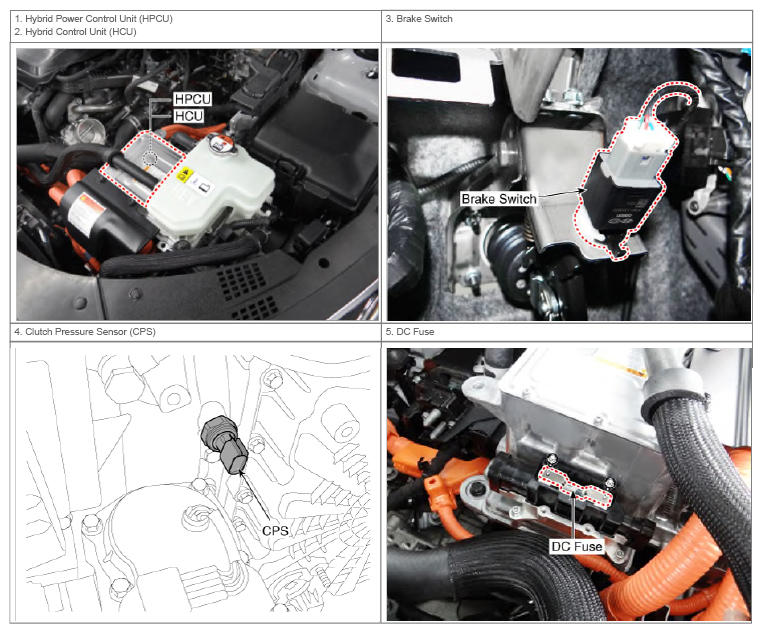

HPCU includes the HCU (Hybrid Control Unit), Inverters (for Drive Motor, HSG and Electric A/C Compressor), MCU (Motor Control Unit) and LDC (Low DC/DC Converter).
For the location of the other control modules, refer to the relevant group.
 Courtesy of KIA MOTORS AMERICA, INC.
|
