Monitor KDS Data

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF".
Connect KDS to Data Link Connector (DLC).
Ignition "ON" and Engine "ON".
Turn "ON" the MFC switch.

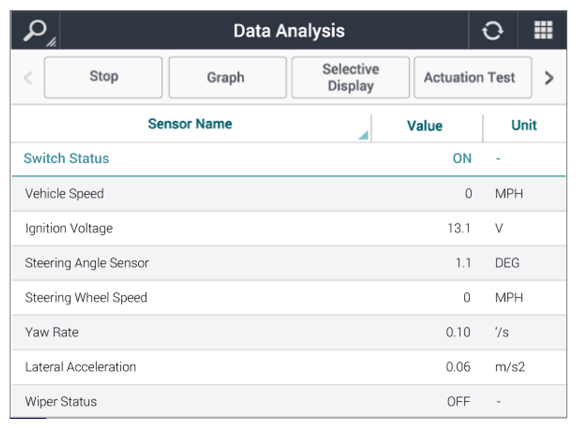

Monitor "Switch Status" parameter in "Current Data" with KDS.
Specification: MFC Switch "ON" - "ON", MFC Switch "OFF" - "OFF"

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Is the parameter displayed within specification?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
