Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

CAUTION: Wear gloves to protect hands from injury.

Information

When removing and installing the trunk lid, work in a group of two or more.

Remove the trunk lid trim.
(Refer to Trunk Lid - "TRUNK LID TRIM ")

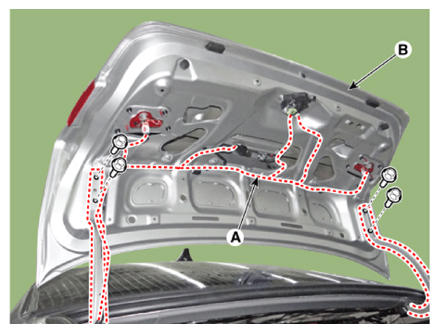

Disconnect the connectors and trunk lid wiring harness (A).
After loosening the mounting bolts, remove the trunk lid assembly (B).
Tightening torque:

6.9 - 8.8 N.m (0.7 - 0.9 kgf.m, 5.1 - 6.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the trunk lid locks/unlocks and opens/closes properly.
- Adjust the trunk lid alignment.
- Make sure that the connectors are connected in properly.
- Replace any damaged clips.
