Repair Procedures: Replacement
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Put on gloves to protect your hands.
NOTE:
- When prying with a flat-tip screwdriver or using a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Be careful not to bend or scratch the trim and panels.
- Remove the rear console cover.
(Refer to Floor Console - "REAR CONSOLE COVER ")

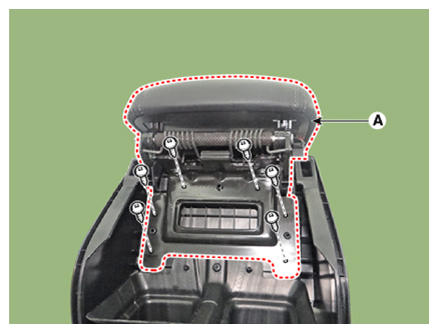

- After loosening the mounting screws, remove the console armrest (A).
- Install in the reverse order of removal.
Information
- Make sure that the connector is connected properly.
- Replace any damage clips.
