Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the right front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

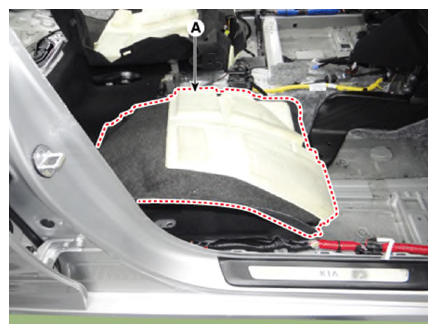

  3. Separate the right floor carpet (A).
    G13390839Courtesy of KIA MOTORS AMERICA, INC.

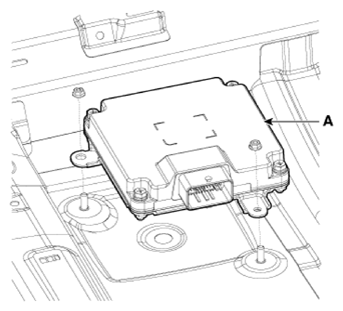

  4. Remove the SVM unit (A) after loosening the mounting the nuts.
    G13390840Courtesy of KIA MOTORS AMERICA, INC.
