Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

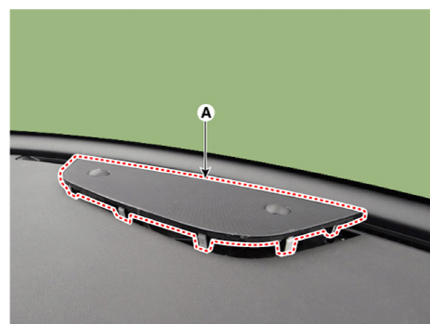

  2. Remove the center speaker grille (A).
    G13363655Courtesy of KIA MOTORS AMERICA, INC.

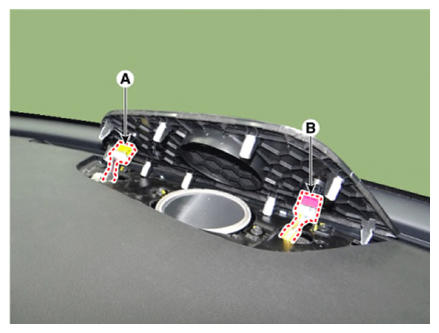

  3. Disconnect the security indicator connector (A) and photo sensor & auto light sensor connector (B).
    G13363656Courtesy of KIA MOTORS AMERICA, INC.

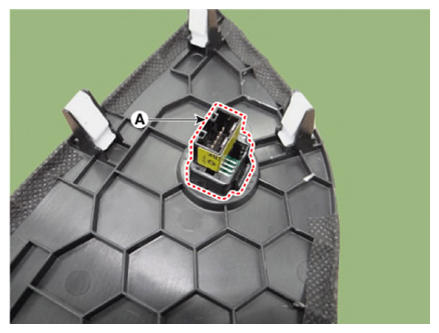

  4. Remove the photo sensor & auto light sensor (A) by pressing the locking pin.
G13363657Courtesy of KIA MOTORS AMERICA, INC.
