Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Disassembly the steering wheel assembly. (Refer to Steering System - "STEERING WHEEL
")

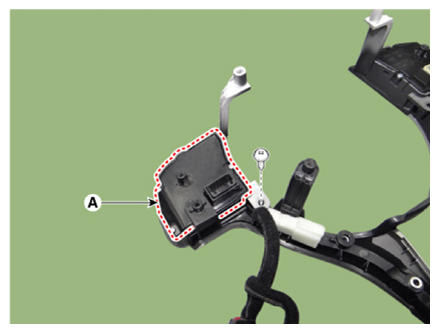

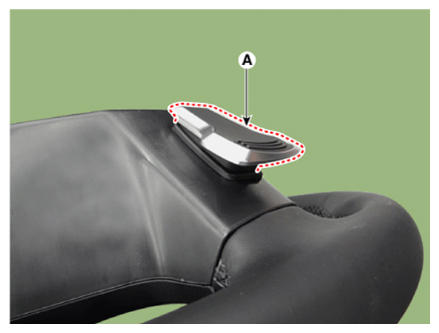

- Remove the paddle shift switch (A) after loosening the mounting screws.
[LH]
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
[RH]
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|

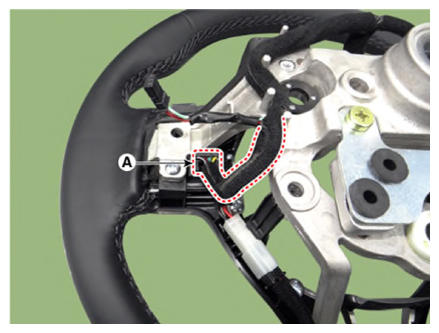

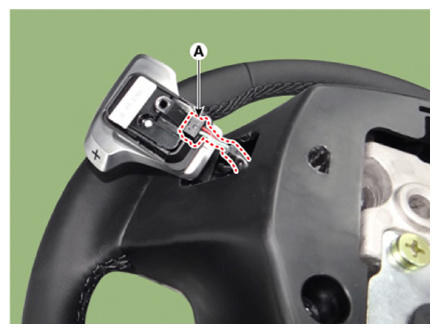

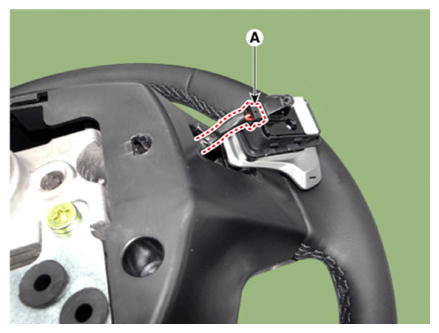

- Disconnect the paddle shift switch connector (A).
[LH]
 Courtesy of KIA MOTORS AMERICA, INC.
|
[RH]
 Courtesy of KIA MOTORS AMERICA, INC.
|

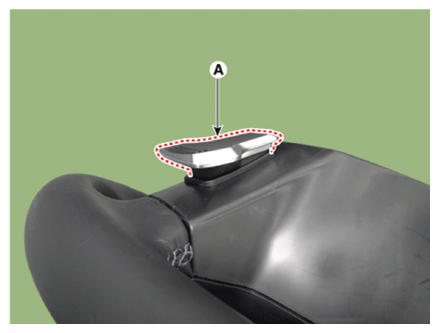

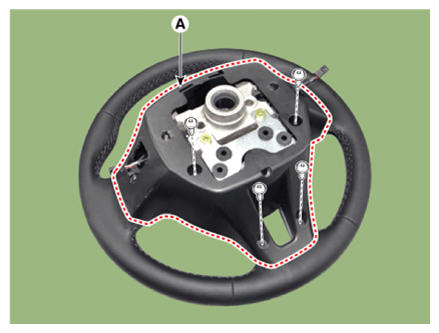

- Remove the steering back cover (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

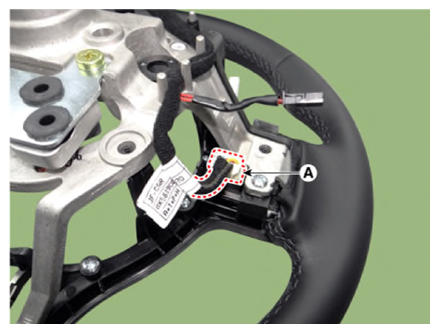

- Disconnect the steering wheel remote connector (A).
[LH]
 Courtesy of KIA MOTORS AMERICA, INC.
|
[RH]
 Courtesy of KIA MOTORS AMERICA, INC.
|

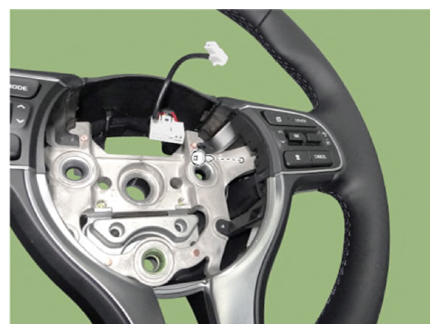

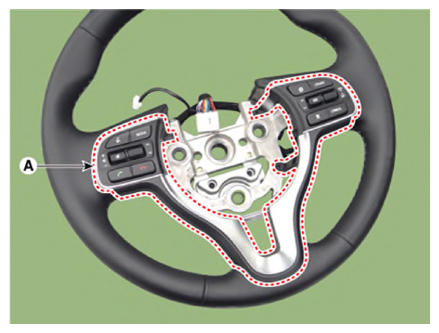

- Remove the steering wheel remote control assembly (A) after loosening the mounting screws.
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|

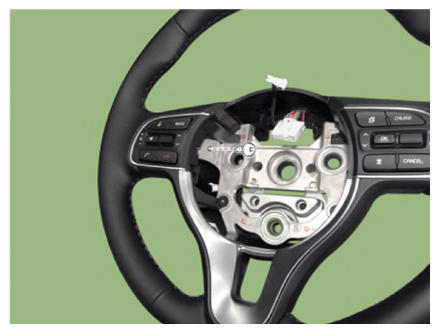

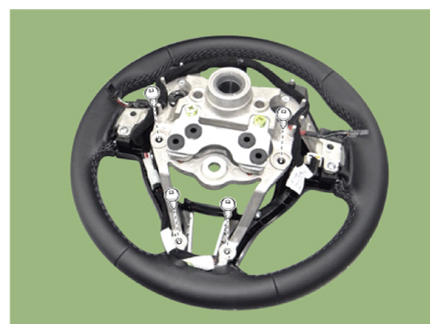

- Remove the ASCC switch (A) after loosening the mounting screws.
 Courtesy of KIA MOTORS AMERICA, INC.
|
