Measuring Resistance

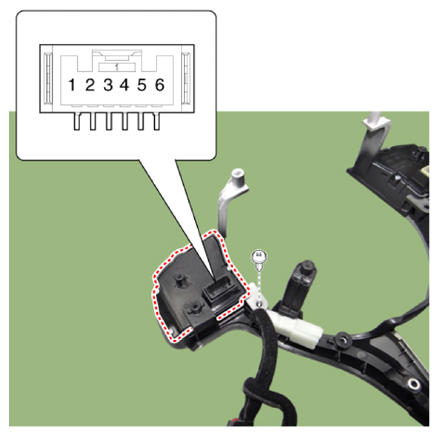

- Disconnect the cruise control switch connector from the control switch.
- Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Function switch |
Connector terminal |
Resistance (kΩ) [±3%] |
| CANCEL |
3-5 |
0.39 |
| SET - |
3-5 |
0.61 |
| RES + |
3-5 |
0.91 |
| CRUISE |
3-5 |
2.13 |
| ASCC |
3-5 |
3.63 |
- If not within specification, replace switch.
