Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.

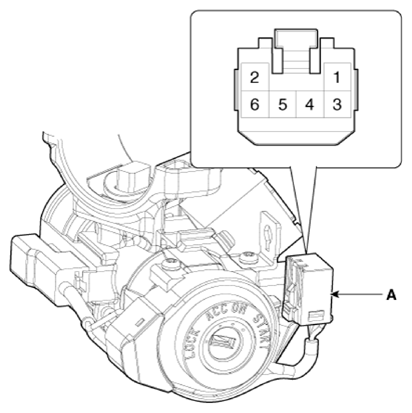

    G13390297Courtesy of KIA MOTORS AMERICA, INC.

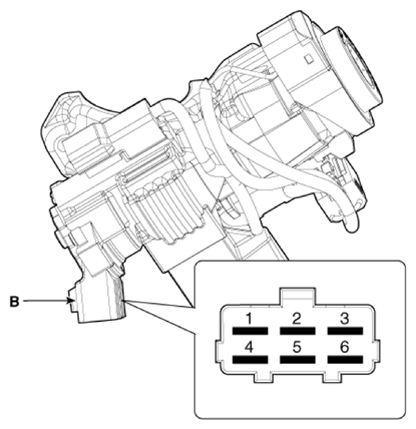

    G13390298Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between the terminals.
  3. If continuity is not as specified, replace the switch.

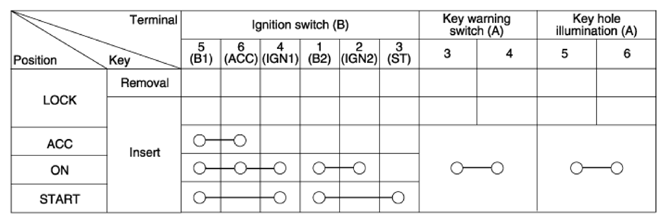

G13390299Courtesy of KIA MOTORS AMERICA, INC.
