Repair Procedures: Installation

Check that the shift lever is placed in the "N" position.

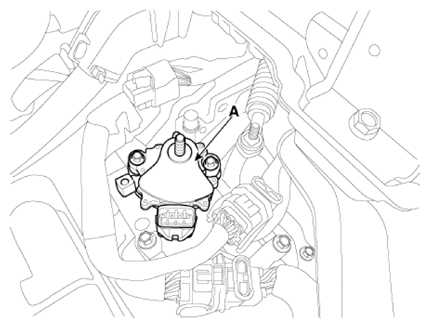

Install the inhibitor switch (A).
NOTE: Lightly tighten the inhibitor switch mounting bolts so that necessary adjustments can be made.

Courtesy of KIA MOTORS AMERICA, INC.

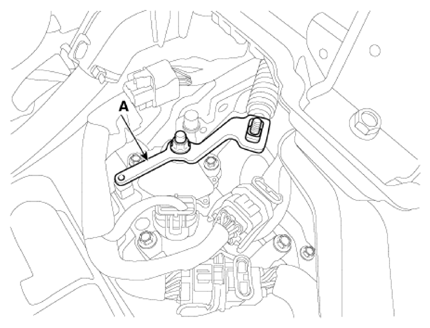

Install the manual control lever (A).
NOTE: Lightly tighten the manual control lever nut so that necessary adjustments can be made.

Courtesy of KIA MOTORS AMERICA, INC.

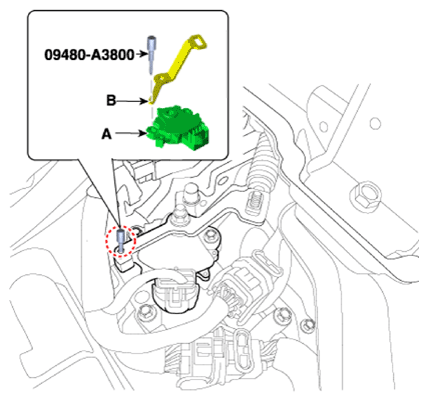

Align the hole (B) in the manual control lever with the "N" position hole (A) of the inhibitor switch and then insert the SST inhibitor switch guide pin (09480-A3800).

Courtesy of KIA MOTORS AMERICA, INC.

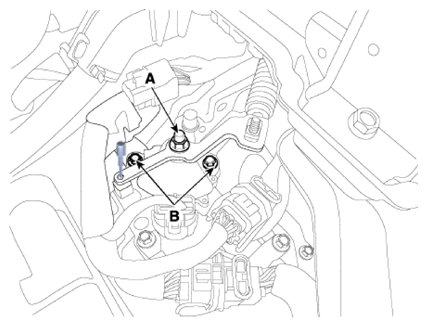

Tighten the manual lever mounting nut (A) to the specified torque.
Tightening Torque:

17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb.ft)
Tighten the inhibitor switch mounting bolts (B) to the specified torque.
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the SST (09480-A3800) from the adjustment hole.

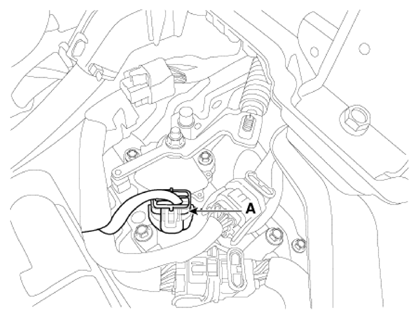

Connect the inhibitor switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

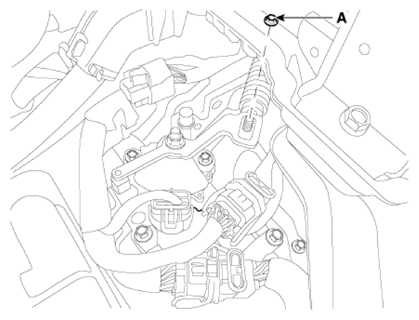

Tighten the nut (A) loosely.
NOTE: Lightly tighten the nut so that necessary adjustments can be made.

Courtesy of KIA MOTORS AMERICA, INC.

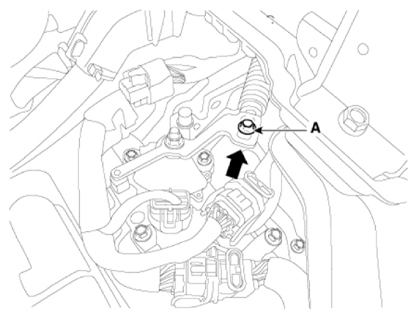

Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.
Tightening Torque:

9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
